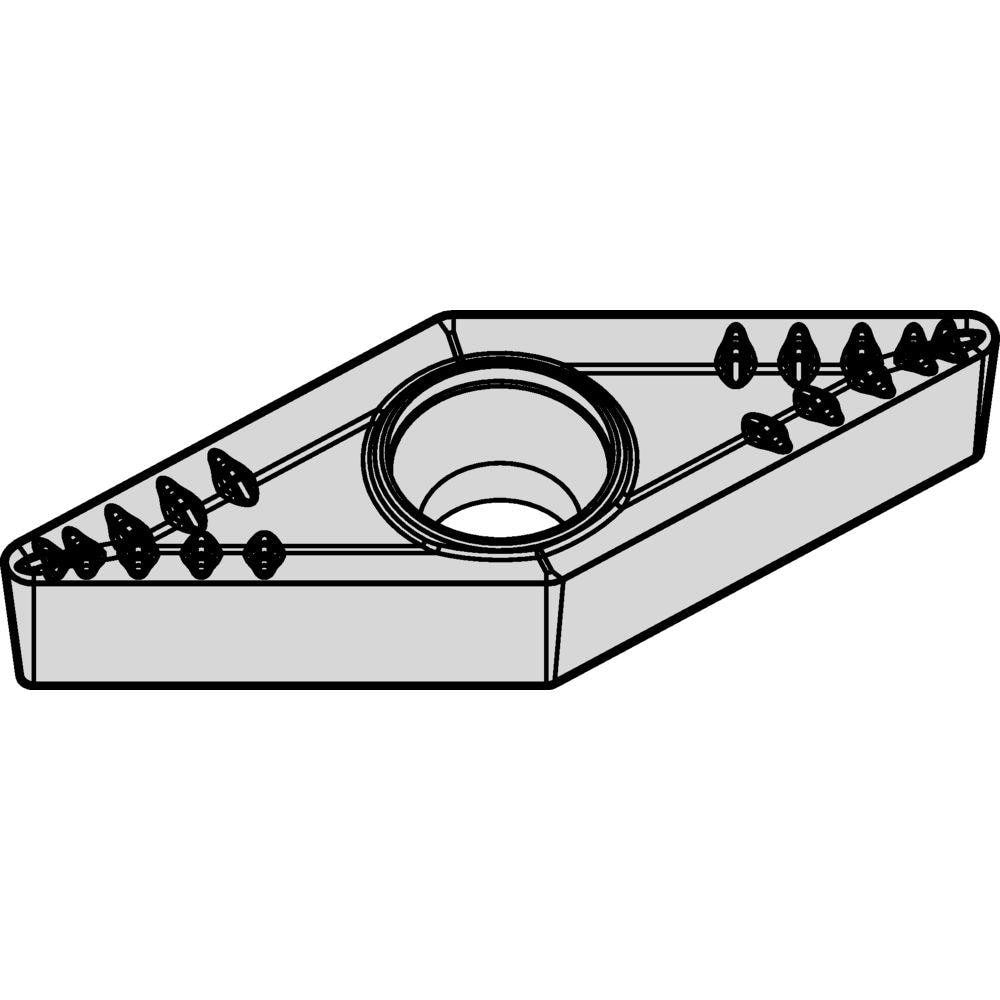

Turning Insert: VBMT331MP KCP25C, Carbide
Item #: 84695501
Brand: Kennametal
Model #: 7088774
Product Specifications
| ANSI Insert Code | VBMT |
| ISO Insert Code | VBMT |
| Relief Angle | 5.000 |
| Insert Style | VBMT |
| Corner Radius (mm) | 0.40 |
| Corner Radius (Inch) | 1/64 |
| Corner Radius (Decimal Inch) | 0.0156 |
| Included Angle | 35.00 |
| Manufacturer Grade | KCP25C |
| Coating/Finish | MT-TiCN |
| Insert Hand | Neutral |
| Insert Thickness (Inch) | 3/16 |
| Insert Thickness | 4.76 |
| Insert Thickness (Decimal Inch) | 0.1875 |
| Series | Screw-On Inserts |
| Inscribed Circle (Decimal Inch) | 0.3750 |
| Inscribed Circle (Inch) | 3/8 |
| Inscribed Circle (mm) | 9.53 |
| Insert Material | Carbide |
| Insert Shape | Diamond 35° |
| Side Clearance | Positive |
| Number Of Cutting Edges | 2 |
| Insert Shape Code | V |
| Insert Holding Method | Screw |
| Width (Inch) | 3/8 |
| Clearance Code | B |
| Tolerance Code | M |
| Rake | Positive |
| Insert Length (Decimal Inch) | 0.6538 |
| Insert Length (mm) | 16.61 |
| Chip Breaker | MP |
| Rake Angle | 16 |
| Cutting Edge Style | Honed |
| Width (Decimal Inch - 4 Decimals) | 0.3750 |
| Width (mm - 2 Decimals) | 9.53 |
| UNSPSC Code | 23242105 |
| Insert Size Code | 331 |
| Country of Origin | UNITED STATES |
