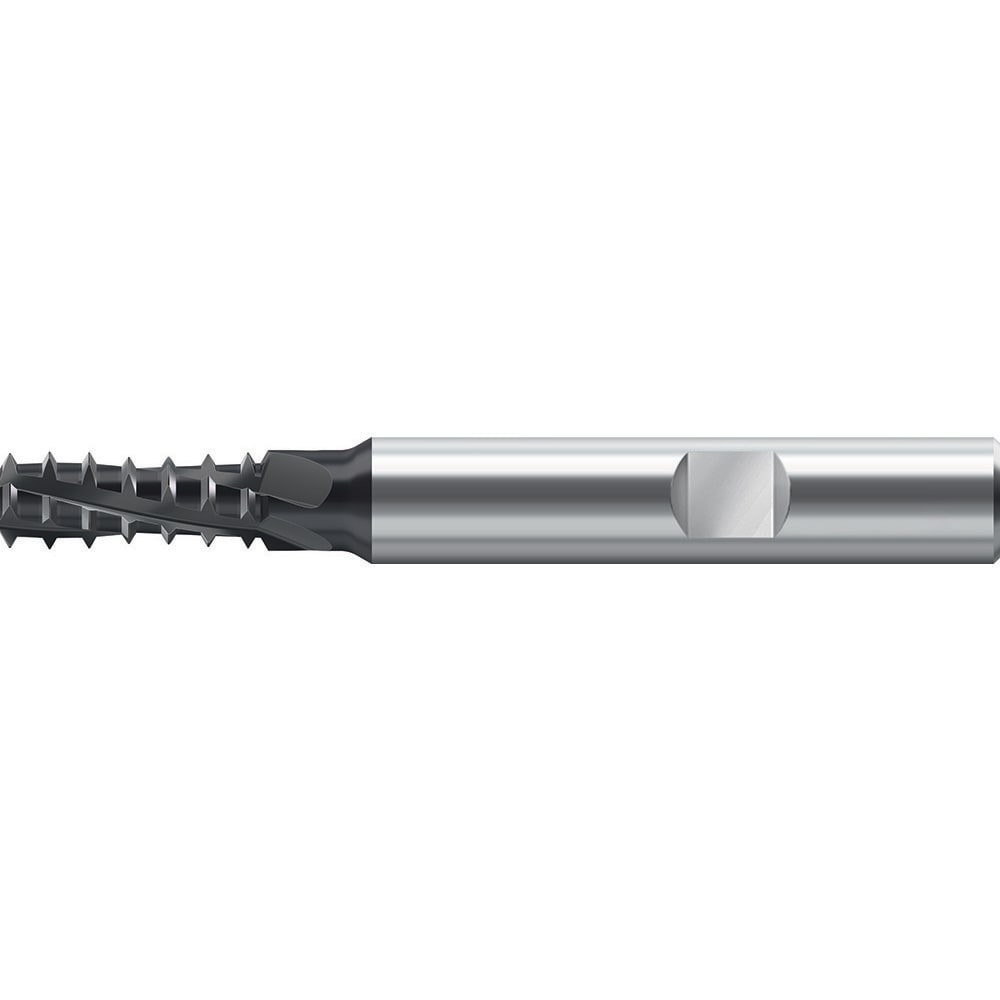

Helical Flute Thread Mill: 3/8-24, Internal, 5 Flute, 8.0000 mm Shank Dia, Solid Carbide
Item #: 53441911
Brand: Walter-Prototyp
Model #: 8117676
Product Specifications
| Material | Solid Carbide |
| Thread Size (Inch) | 3/8-24 |
| Thread Type | Internal |
| Shank Diameter (mm) | 8.0000 |
| Shank Diameter (Decimal Inch) | 0.3150 |
| Cutting Diameter (mm) | 7.90 |
| Shank Type | Weldon Flat |
| Cutting Diameter (Decimal Inch) | 0.3110 |
| Length Of Cut (Decimal Inch - 4 Decimals) | 0.7500 |
| Length of Cut (mm) | 19.0500 |
| Shank Length (Decimal Inch) | 1.4173 |
| Shank Length (mm) | 36.000 |
| Overall Length (mm) | 67.0000 |
| Overall Length (Decimal Inch) | 2.6378 |
| Thread Standard | UNF |
| Flute Direction | Right Hand |
| Series | TC620-UNF-W5D |
| Number Of Flutes | 5 |
| Coating/Finish | AlTiN |
| Coolant Through | Yes |
| Teeth Per Inch | 24 |
| UNSPSC Code | 23242117 |
