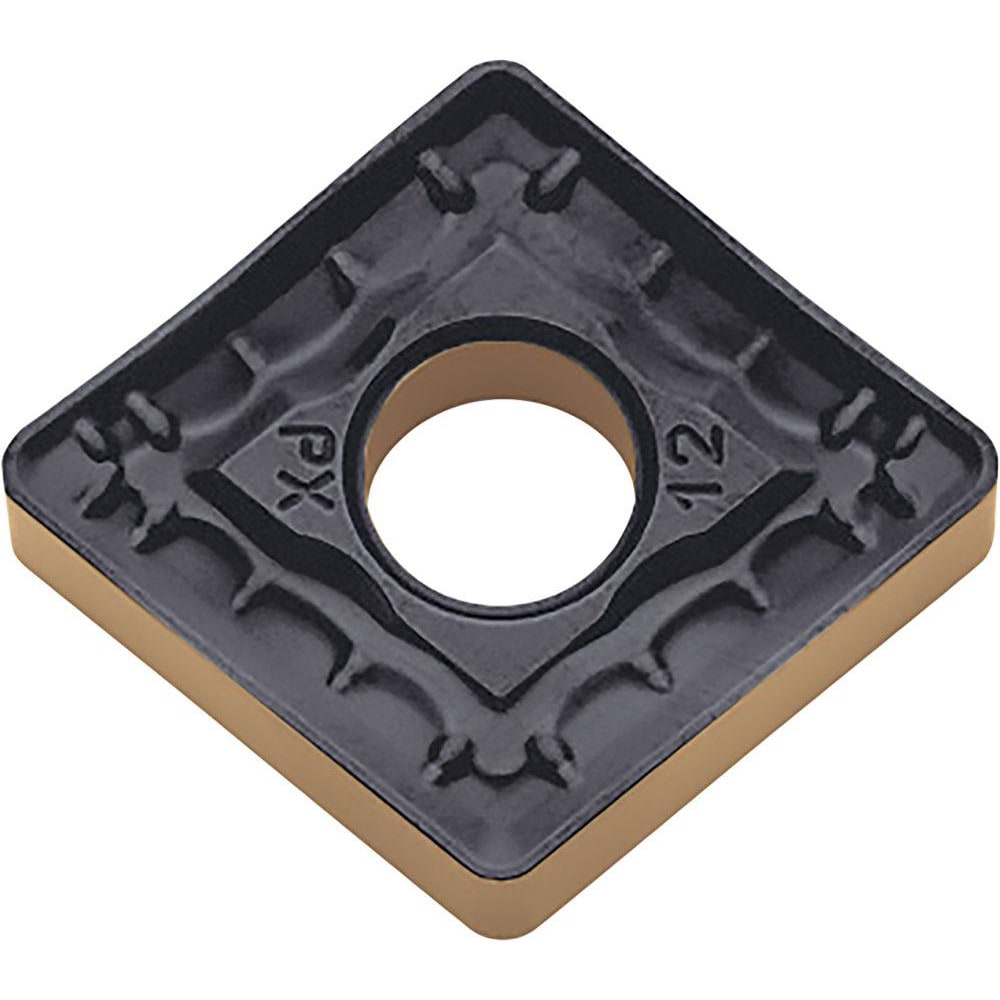

Turning Insert: CNMM642PX CA125P, Carbide
Item #: 04734380
Brand: Kyocera
Model #: TMK00114
Product Specifications
| ANSI Insert Code | CNMM642 |
| ISO Insert Code | CNMM190608 |
| Relief Angle | 0 |
| Insert Style | CNMM |
| Corner Radius (mm) | 0.80 |
| Corner Radius (Inch) | 1/32 |
| Corner Radius (Decimal Inch) | 0.0315 |
| Included Angle | 80 |
| Manufacturer Grade | CA125P |
| Coating/Finish | TiCN/Al2O3/TiN |
| Wiper Edge | No |
| Insert Hand | Neutral |
| Insert Thickness (Inch) | 1/4 |
| Insert Thickness | 6.35 |
| Insert Thickness (Decimal Inch) | 0.2500 |
| Series | ISO Insert |
| Inscribed Circle (Decimal Inch) | 0.7500 |
| Inscribed Circle (Inch) | 3/4 |
| Inscribed Circle (mm) | 19.05 |
| Insert Material | Carbide |
| Insert Shape | C - Diamond (Rhombic) 80-Deg |
| Grade Characteristics | Steel (P) - High Wear-Resistance to High Toughness |
| Side Clearance | Negative |
| Number Of Cutting Edges | 2 |
| Insert Shape Code | C |
| Hole Diameter (Decimal Inch) | 0.3126 |
| Hole Diameter (Mm) ( - 0 Decimals) | 7.94 |
| Insert Holding Method | Screw; Clamp |
| Clearance Code | N |
| Tolerance Code | M |
| Coating Process | CVD |
| Rake | Negative |
| Primary Workpiece Material | Alloy Steel; Carbon Steel |
| Primary Workpiece Material Code | P |
| Secondary Workpiece Material Code | None |
| Iso Code | CNMM190608PX |
| Manufacturers Catalog Number | CNMM642PXCA125P |
| Chip Breaker | PX |
| Cutting Edge Style | Single Sided; High Feed Rate |
| Multi-Use Tool | Yes |
| Multi-Use Application | External Turning; Facing; Internal Facing; Boring |
| ANSI Size Code | 642 |
| ISO Size Code | 190608 |
| UNSPSC Code | 23242107 |
| Insert Size Code | 642 |
