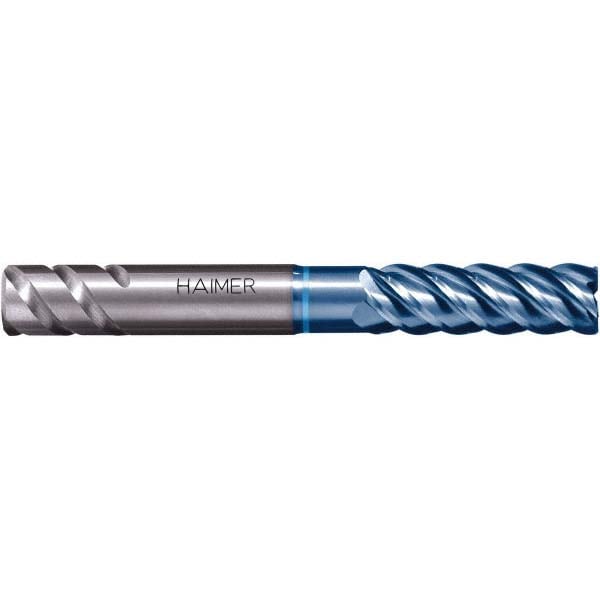

Brand: HAIMER / Part #: F1005LLL1400CAA
Item #: 52175502
Brand: HAIMER
Model #: F1005LLL1400CAA
Product Specifications
| Mill Diameter (mm) | 14.00 |
| Chamfer Width (mm) | 0.40 |
| Chamfer Width (Decimal Inch) | 0.0157 |
| Coating/Finish | AlTiN |
| End Mill Material | Solid Carbide |
| Number Of Flutes | 5 |
| Single Or Double End | Single |
| Overall Length (mm) | 105.00 |
| Length of Cut (mm) | 42.00 |
| Cutting Direction | Right Hand |
| Mill Diameter (Decimal Inch) | 0.5512 |
| Flute Direction | Right Hand |
| End Type | Corner Chamfer |
| Chamfer Angle | 45 |
| Length Of Cut (Decimal Inch - 4 Decimals) | 1.6535 |
| Extended Reach | Yes |
| Variable Index | Yes |
| Variable Helix | Yes |
| Shank Diameter (mm) | 14.00 |
| Neck Diameter (mm) | 13.30 |
| Neck Diameter (Decimal Inch) | 0.5236 |
| Reach Length (Decimal Inch) | 2.2047 |
| Reach Length (mm) | 56.00 |
| Minimum Helix Angle | 46.00 |
| Maximum Helix Angle | 47.00 |
| Overall Length Tolerance | +0.05 to -0.05 mm |
| Material Grade | Submicron |
| TIR Maximum (Decimal Inch) | 0.0002 |
