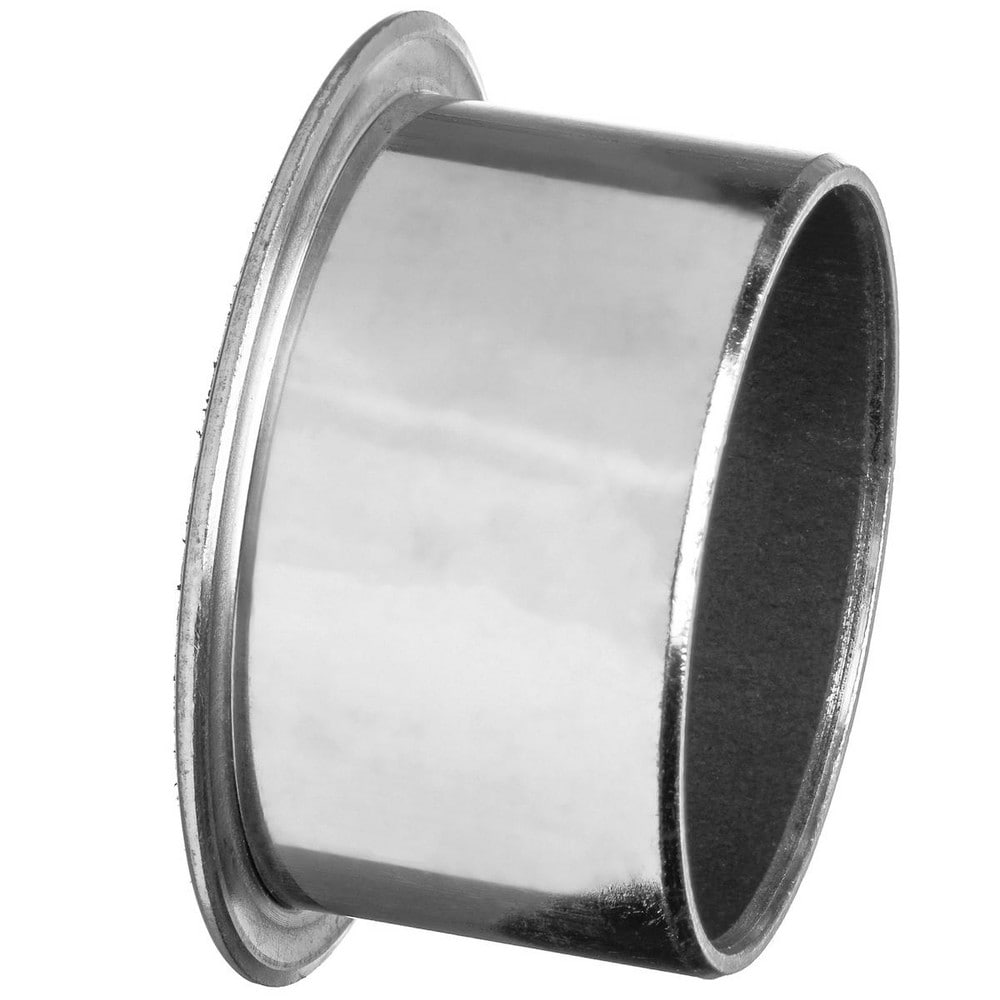

Sleeve Bearings; Bearing Type: Flanged; Outside Diameter (Inch): 1-13/32; Outside Diameter (Decimal Inch - 4 Decimals): 1.4063; Inside Diameter (Inch): 1-1/4; Inside Diameter (Decimal Inch): 1.2500
Item #: 76805811
Brand: USA Industrials
Model #: ZUSAB-PB-1089
Product Specifications
| Bearing Type | Flanged |
| Outside Diameter (Inch) | 1-13/32 |
| Outside Diameter (Decimal Inch - 4 Decimals) | 1.4063 |
| Inside Diameter (Inch) | 1-1/4 |
| Inside Diameter (Decimal Inch) | 1.2500 |
| Flange Outside Diameter (Decimal Inch) | 1.2500 |
| Flange Outside Diamete (mm) | 31.75 |
| Flange Outside Diameter (Inch) | 1-1/4 |
| Flange Thickness (Decimal Inch) | 0.0781 |
| Flange Thickness (Inch) | 5/64 |
| Material | Steel |
| Overall Length (Inch) | 1-1/4 |
| Overall Length (Decimal Inch) | 1.2500 |
| Static Load Capacity | 312882.30 |
| Dynamic Load Capacity | 2923960.790 |
| Maximum Pressure X Velocity | 406 |
| Bore Type | Plain |
| Lubricant Type | PTFE |
| Temperature Range | -320 to 530 Deg F |
| Housing Bore Limits Maximum | 1.4070 |
| Housing Bore Limits Mininum | 1.4060 |
| Flange Thickness (mm) | 1.98 |
| Inside Diameter (mm) | 31.7500 |
| Overall Length (mm) | 31.75 |
| UNSPSC Code | 31171501 |
| Country of Origin | United Kingdom |
