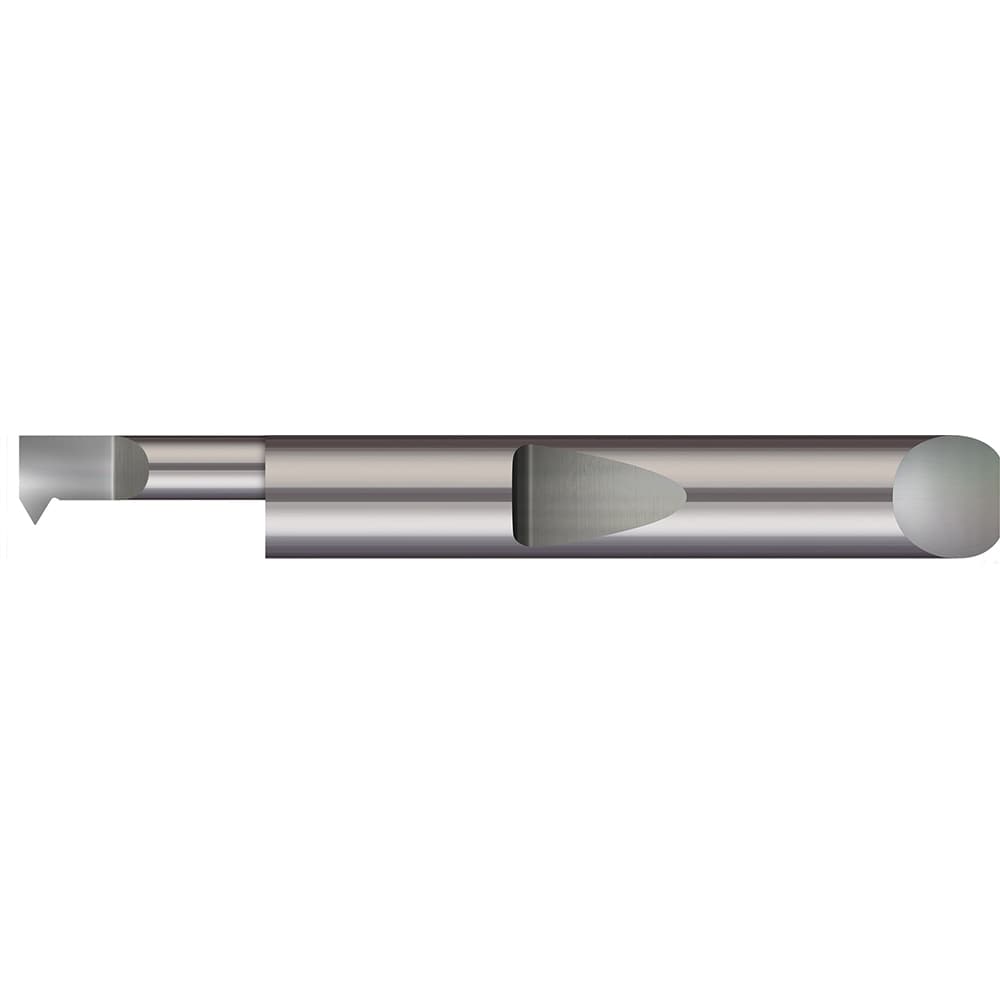

Single Point Threading Tools; Thread Type: Internal, External; Material: Solid Carbide; Profile Angle: 60; Threading Diameter (Decimal Inch): 0.1100; Cutting Depth (Decimal Inch): 0.7500; Maximum Threads Per Inch: 56
Item #: 84675560
Brand: Micro 100
Model #: QIT-100750
Product Specifications
| Thread Type | Internal; External |
| Material | Solid Carbide |
| Profile Angle | 60 |
| Threading Diameter (Decimal Inch) | 0.1100 |
| Cutting Depth (Decimal Inch) | 0.7500 |
| Maximum Threads Per Inch | 56 |
| Minimum Threads Per Inch | 24 |
| Shank Diameter (Inch) | 3/16 |
| Shank Diameter (Decimal Inch) | 0.1875 |
| Thread Direction | Right Hand |
| Projection from Edge (Decimal Inch) | 0.0250 |
| Overall Length (Decimal Inch) | 2.0000 |
| Overall Length (Inch) | 2 |
| Manufacturer's Part Number | QIT-100750 |
| Maximum Reach (Decimal Inch) | 0.7500 |
| Coating/Finish | Uncoated |
| Coolant Through | Yes |
| UNSPSC Code | 23242117 |
| Country of Origin | UNITED STATES |
