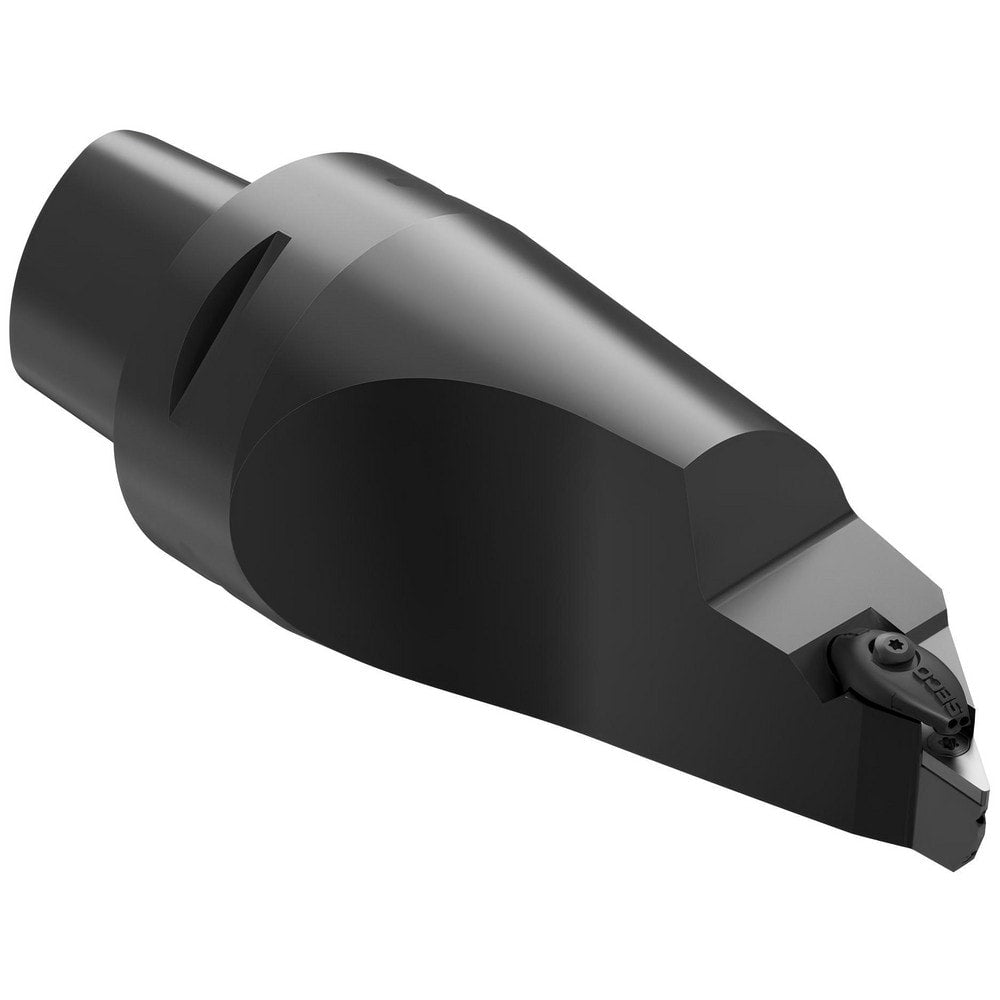

Modular Turning & Profiling Cutting Unit Heads; System Size: C8; Cutting Direction: Right Hand; Compatible Insert Style: VB..; Compatible Insert Size Code: 33.
Item #: 82805235
Brand: Seco
Model #: 10189805
Product Specifications
| System Size | C8 |
| Cutting Direction | Right Hand |
| Compatible Insert Style | VB.. |
| Compatible Insert Size Code | 33. |
| Internal or External | External |
| Insert Holding Method | Clamp |
| Vibration Dampening | No |
| Center to Cutting Edge (Decimal Inch) | 0.0000 |
| Series | DVMBR |
| Axial Rake Angle | 0.0 |
| Radial Rake Angle (Degrees) | 0 |
| Head Connection Size | C8 |
| Cutting Tool Application | Profiling; Turning |
| Standards | ISO; ANSI |
| Coolant Through | Yes |
| Head Length Projection (Decimal Inch) | 6.2990 |
| Maximum Hole Depth (Decimal Inch) | 8.4650 |
| Minimum Hole Diameter (Decimal Inch) | 6.6930 |
| UNSPSC Code | 23242100 |
| Country of Origin | India |
