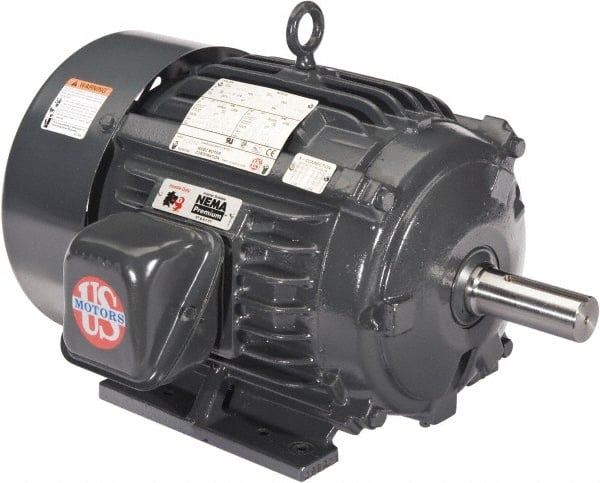

2 hp, TEFC Enclosure, No Thermal Protection, 1175, 970 RPM, 208-230/460 & 190/380 Volt, 60/50 Hz, Three Phase Premium Efficient Motor Size 184 Frame, Horizontal-Footed Mount, 1 Speed, Double Shielded Ball Bearings, 6.4-6.2/3.1 Full Load Amps, F Class Insu
Item #: 63055099
Brand: US Motors
Model #: H2P3D
Product Specifications
| Motor Type | Three Phase Premium Efficient |
| Type of Enclosure | TEFC |
| Horsepower | 2 hp; 2; 2 hp old; 2 W; 2 h |
| Thermal Protection Rating | None |
| Enclosure Style | TEFC |
| Horse Power | 2 hp; 2 hp old; 2 W; 2 h |
| Name Plate RPMs | 1175, 970 |
| Voltage | 208-230/460 & 190/380 |
| Frequency Hz | 60/50 Hz; 60/50 |
| Frame Size | 184 |
| Mount Type | Horizontal-Footed |
| Number of Speeds | 1 |
| Bearing Type | Double Shielded Ball |
| Application | General Equipment; Harsh Environment |
| Full Load Amperage | 6.4-6.2/3.1 |
| Service Factor Rating | 1.0 |
| Applications | General Equipment; Harsh Environment |
| Insulation Class | F |
| Frame Material | Cast Iron |
| Service Factor Rating | 1 |
| PSC Code | 6105 |
