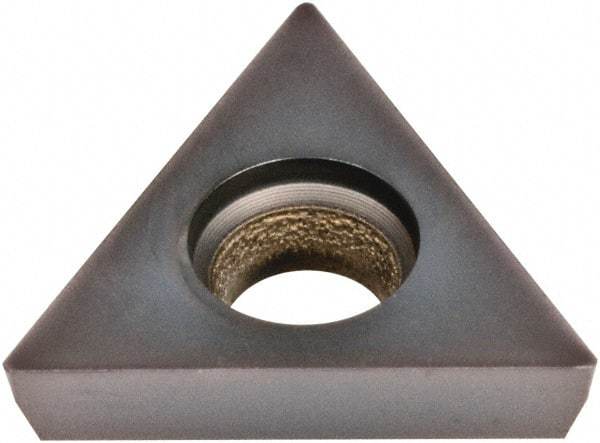

Kennametal - TPGW21.52 MT Grade KB5630 PCBN Turning Insert - AlTiN Finish, 60° Triangle, 1/4" Inscr Circle, 3/32" Thick, 1/32" Corner Radius
Item #: 63049548
Brand: Kennametal
Model #: 3747244
Exact Tooling IR#: 04
Features and Benefits
Polycrystalline cubic boron nitride (PCBN) is similar to diamond. It is commonly used on hardened steels, cast iron, carbide, nickel alloys and hard ferrous materials.
| Product Specifications | |
|---|---|
| Insert Style | TPGW |
| Insert Size | 21.52 |
| Material | PCBN |
| Inscribed Circle (Decimal Inch) | 0.2500 |
| Inscribed Circle (Inch) | 1/4 |
| Thickness (Inch) | 3/32 |
| Thickness (Decimal Inch) | 0.0938 |
| Corner Radius (Inch) | 1/32 |
| Corner Radius (Decimal Inch) | 0.0313 |
| Manufacturer's Grade | KB5630 |
| Coating | AlTiN |
| Chip Breaker | MT |
| Hole Diameter (Decimal Inch) | 0.8000 |
| ISO Number | TPGW110208S01015C |
| Relief Angle | 11 |
| Manufacturers Catalog Number | TPGW2152S0415C |
| Included Angle | 60 |
| Insert Holding Method | Screw |
| Shape | Triangle |
