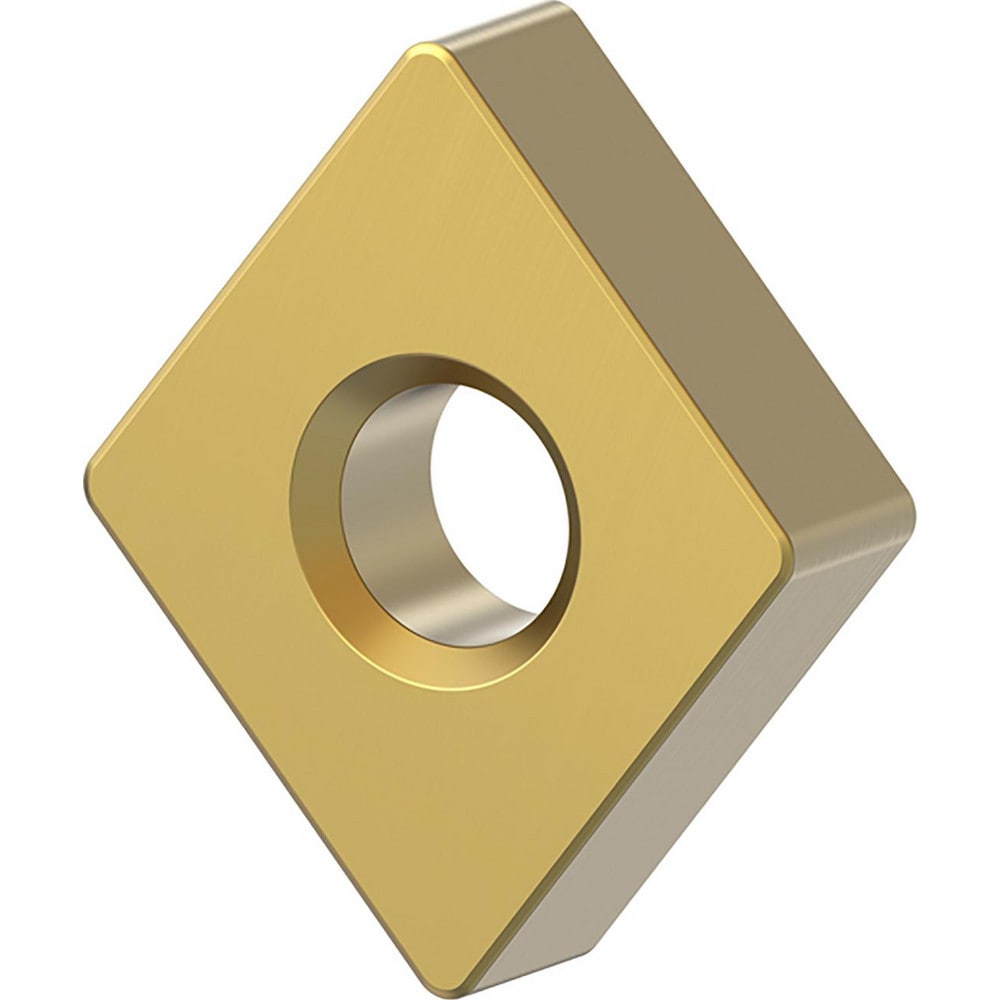

Turning Insert: CNGA431T0420 KYHK15B, Ceramic
Item #: 26179630
Brand: Kennametal
Model #: 6770553
Product Specifications
| ANSI Insert Code | CNGA431 |
| ISO Insert Code | CNGA120404 |
| Relief Angle | 0 |
| Insert Style | CNGA |
| Corner Radius (Inch) | 1/64 |
| Corner Radius (Decimal Inch) | 0.0156 |
| Included Angle | 80 |
| Manufacturer Grade | KYHK15B |
| Coating/Finish | AlTiN |
| Wiper Edge | No |
| Insert Hand | Neutral |
| Insert Thickness (Inch) | 3/16 |
| Insert Thickness (Decimal Inch) | 0.1875 |
| Series | KENLOC |
| Inscribed Circle (Decimal Inch) | 0.5000 |
| Inscribed Circle (Inch) | 1/2 |
| Insert Material | Ceramic |
| Insert Shape | C - Diamond (Rhombic) 80-Deg |
| Chip Breaker Operation | Flat Top |
| Side Clearance | Negative |
| Number Of Cutting Edges | 4 |
| Insert Shape Code | C |
| Hole Diameter (Decimal Inch) | 0.2031 |
| Maximum Depth of Cut (Decimal Inch) | 0.1691 |
| Insert Holding Method | Pin; Clamp |
| Width (Inch) | 1/2 |
| Clearance Code | N |
| Tolerance Code | G |
| Coating Process | PVD |
| Length Range (Decimal Inch) | 0.5000 - 0.6000 |
| Rake | Negative |
| Insert Length (Decimal Inch) | 0.5077 |
| Primary Workpiece Material | Hard Material; Cast Iron; Superalloys & Titanium |
| Primary Workpiece Material Code | S; H; K |
| Iso Code | CNGA120404T01020 |
| Standards | ISO; ANSI |
| Manufacturers Catalog Number | 6770553 |
| Material Grade | Alumina TiCN |
| Coating Classification | PVD |
| Chip Breaker | Flat Top |
| Rake Angle | 0 |
| Cutting Edge Style | T-Land |
| Industry Standard Number | CNGA431T0420 |
| Width (Decimal Inch - 4 Decimals) | 0.5000 |
| Multi-Use Tool | Yes |
| Full Radius | No |
| Multi-Use Application | Facing; Turning; Boring |
| ANSI Size Code | 431 |
| ISO Size Code | 120404 |
| UNSPSC Code | 23242105 |
| Insert Size Code | 431 |
