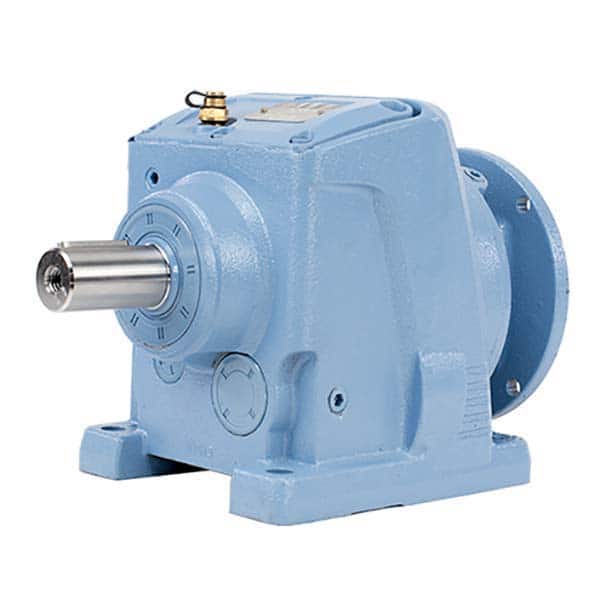

Worldwide Electric - Speed Reducers Centerline Distance: 7.250 (Decimal Inch) Ratio: 30:1
Item #: 17069592
Brand: Worldwide Electric
Model #: WINL87-30/1-182
Product Specifications
Speed Reducers; Centerline Distance: 7.250 (Decimal Inch); Ratio: 30:1 ; NEMA Size: 182/4TC ; Shaft Style: Solid ; Bore Size (Decimal Inch): 1.3750 ; Shaft Diameter (Decimal Inch): 1.1250
| Centerline Distance (Decimal Inch) | 7.250 |
| Ratio | 30:1 |
| NEMA Size | 182/4TC |
| Shaft Style | Solid |
| Bore Size (Decimal Inch) | 1.3750 |
| Shaft Diameter (Decimal Inch) | 1.1250 |
| Maximum Torque Inch/Lbs (Pounds) | 11.15 |
| Minimum Input Horsepower | 11550.00 |
| Output RPM at 1750 Input | 55.0 |
