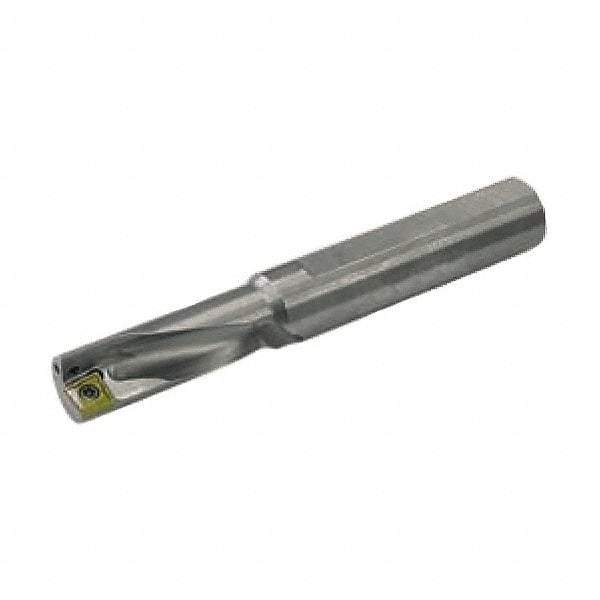

Allied Machine and Engineering - 0.89" Max Drill Depth, 2.25xD, 8mm Diam, Indexable Insert Drill - 1 Insert, 1/2" Shank Diam, Straight Shank
Item #: 62795554
Brand: Allied Machine and Engineering
Model #: 11147310
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Drill Style | EC |
| Drill Diameter (mm) | 8.00 |
| Drill Diameter (Decimal Inch) | 0.3150 |
| Maximum Drill Depth (Decimal Inch) | 0.8900 |
| Shank Type | Straight |
| Shank Diameter (Decimal Inch) | 0.5000 |
| Shank Diameter (Inch) | 1/2 |
| Cutting Direction | Left Hand |
| Through Coolant | Through Coolant |
| Drill Depth by Diameter Ratio | 2.25xD |
| Insert Size (Decimal Inch) | 0.1970 |
| Number of Drill Inserts | 1 |
| Maximum Drill Diameter (Decimal Inch) | 0.3270 |
| Overall Length/Projection (Decimal Inch) | 2.7100 |
| Insert Compatibility | XCET 050202FN-27P; XCET 050202FN-27Q; XCET 050204FN-27P; XCET 050204FN-27Q; XCNT 050202EN; XCNT 050204EN |
| Flute Length (Decimal Inch) | 0.8900 |
| Body Length (Decimal Inch) | 1.0850 |
| Shank Length (Decimal Inch) | 1.6250 |
| Collar Diameter (Decimal Inch) | 0.6300 |
| Series | EcoCut Classic |
| Coolant Hole Thread Type | NPT |
| Shank End Coolant Hole Thread Size (Inch) | 1/16-27 |
