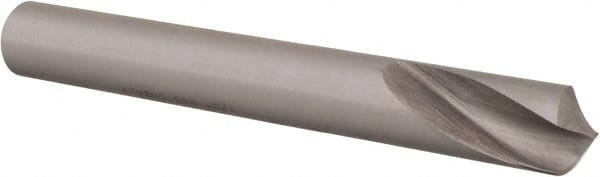

120° 0.5512″ Diam 4-1/2″ OAL Cobalt Spotting Drill Bright/Uncoated, 1-3/8″ Flute Length, 0.5512″ Shank Diam
Item #: 62794458
Brand: Hertel
Model #: H-81196140000
Product Specifications
| Drill Point Angle | 120 |
| Cutting Diameter (mm) | 14.00 |
| Cutting Diameter (Decimal Inch) | 0.5512 |
| Overall Length (Inch) | 4-1/2 |
| Tool Material | Cobalt M-35 (HSS-E) |
| Coating/Finish | Bright/Uncoated |
| Single/Double Ended | Single |
| Overall Length (Decimal Inch) | 4.5000 |
| Flute Length (Inch) | 1-3/8 |
| Flute Length (Decimal Inch) | 1.3750 |
| Shank Diameter (Decimal Inch) | 0.5512 |
| Shank Diameter (mm) | 14.00 |
| Flute Type | Spiral |
| Number of Flutes | 2 |
| Shank Type | Straight-Cylindrical |
| Tool Performance | General Purpose |
| Tool Application | Spotting |
| Cutting Direction | Right Hand |
| Web Thinning | Web Thinned |
| Web Thickness | 0.0550 |
