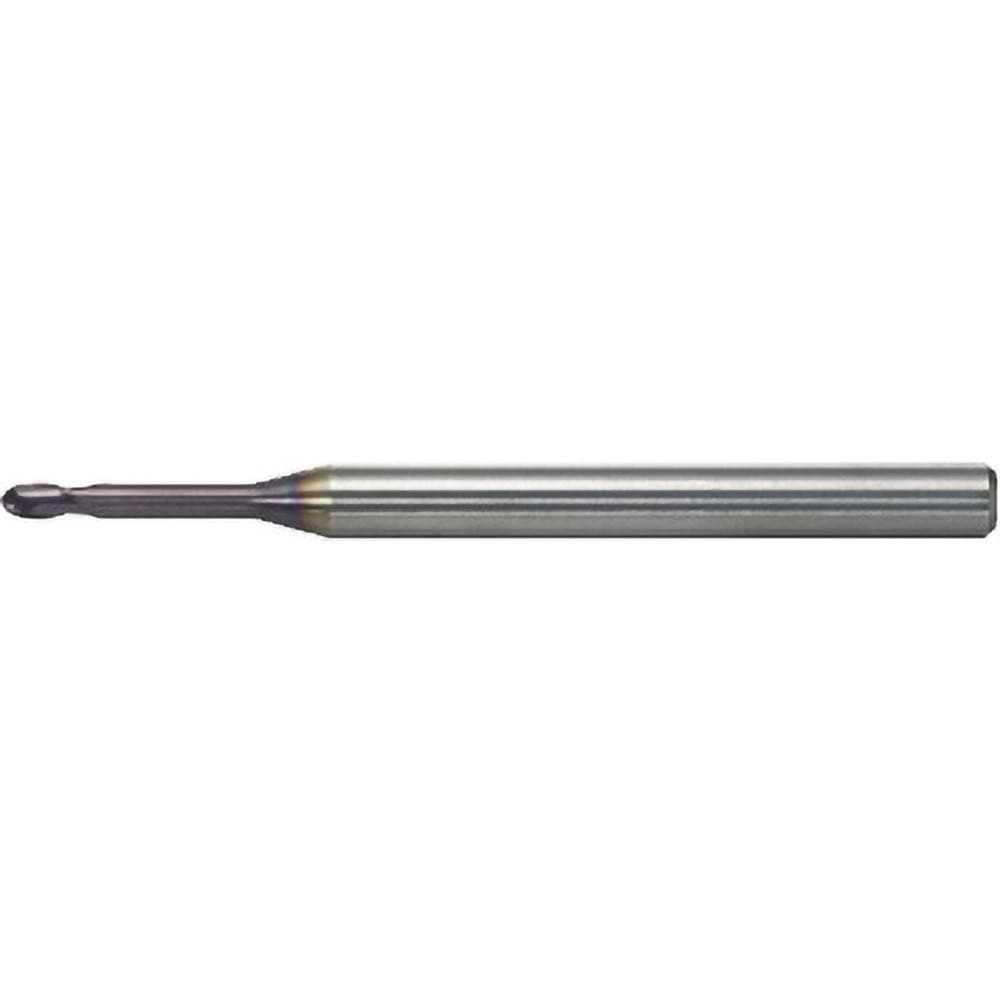

Ball End Mill: 1/32" Dia, 0.80 mm LOC, 2 Flute, Solid Carbide
Item #: 87057634
Brand: Mitsubishi
Model #: 316996
Product Specifications
| Mill Diameter (Inch) | 1/32 |
| Mill Diameter (Decimal Inch) | 0.0313 |
| Mill Diameter (mm) | 0.80 |
| Number Of Flutes | 2 |
| End Mill Material | Solid Carbide |
| Length of Cut (mm) | 0.80 |
| Coating/Finish | AlTiN |
| Overall Length (Inch) | 2 |
| Shank Diameter (Inch) | 1/8 |
| Extended Reach | Yes |
| Variable Helix | No |
| Variable Index | No |
| Helix Angle | 30 |
| Overall Length (Decimal Inch) | 2.0000 |
| Overall Length (mm) | 50.80 |
| Chipbreaker | No |
| Undercutting | No |
| Length Type | Long |
| Material Removal Type | Roughing & Finishing |
| Shank Diameter (Decimal Inch) | 0.1250 |
| Shank Diameter (mm) | 3.18 |
| Neck Diameter (Decimal Inch) | 0.0301 |
| Neck Diameter (mm) | 0.76 |
| Nose Radius (mm) | 0.40 |
| Nose Radius (Decimal Inch) | 0.0156 |
| Neck Length (Inch) | 3/8 |
| Neck Length (Decimal Inch) | 0.3750 |
| Neck Length (mm) | 9.53 |
| Shank Diameter Tolerance | h6 |
| Primary Workpiece Material | Steel |
| Primary Workpiece Material Code | P |
| Secondary Workpiece Material | Stainless Steel; Superalloys & Titanium; Steel; Titanium Alloy |
| Secondary Workpiece Material Code | S; H; M |
| Material Grade | Carbide |
| Flute Direction | Right Hand |
| Cutting Direction | Right Hand |
| Series | MS |
| Flute Type | Spiral |
| UNSPSC Code | 27112803 |
| Centercutting | Yes |
| Coating Classification | PVD |
| Single Or Double End | Single |
| Shank Type | Straight-Cylindrical |
| Pitch | Normal |
| Coolant Through | No |
| Length Of Cut (Decimal Inch - 4 Decimals) | 0.0313 |
| System Of Measurement | Fractional Inch |
| Country of Origin | Japan |
