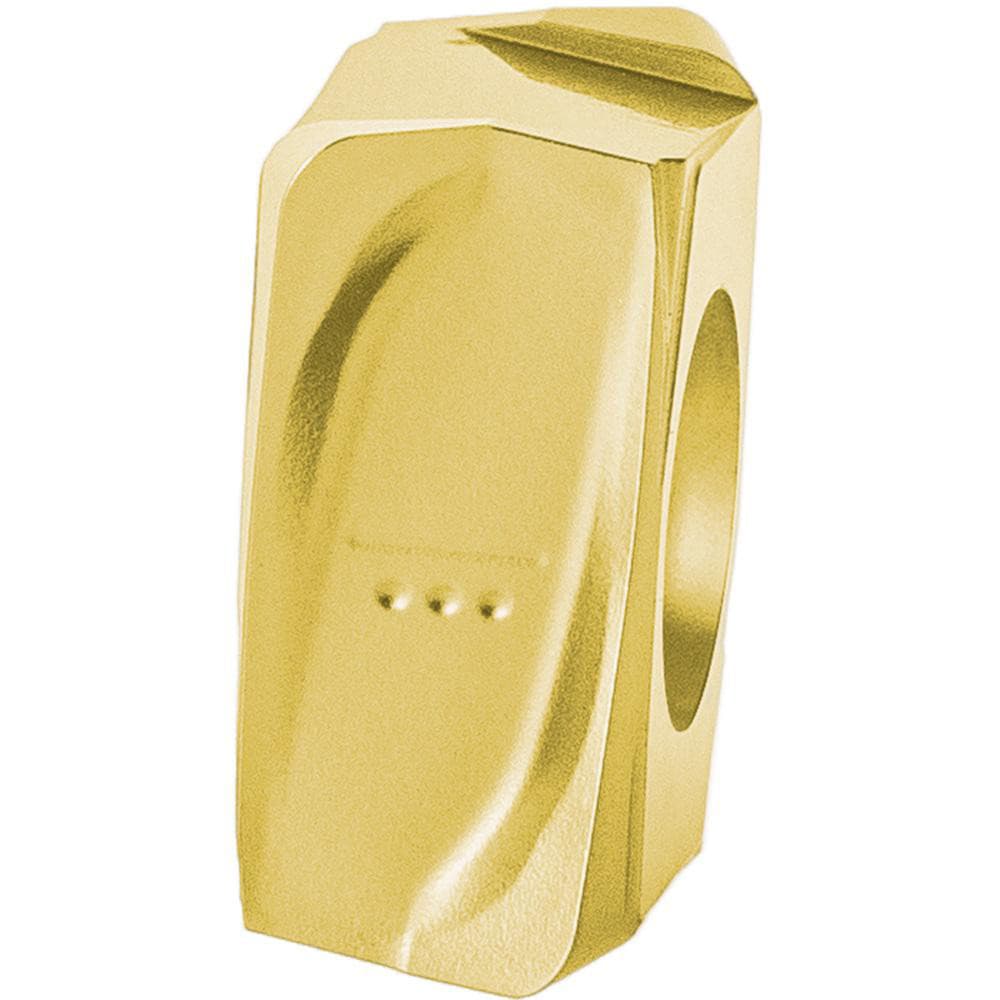

Milling Insert: LOGU030310ER-GM PR1810, Carbide
Item #: 87547998
Brand: Kyocera
Model #: TLS00081
Product Specifications
| Insert Style | LOGU |
| Insert Size | 030310 |
| Insert Material | Carbide |
| Insert Shape | Rectangle |
| Manufacturer Grade | PR1810 |
| Corner Radius (Decimal Inch) | 0.0394 |
| Corner Radius (mm) | 1.00 |
| Number Of Cutting Edges | 4 |
| Thickness (Decimal Inch - 4 Decimals) | 0.1559 |
| Thickness (mm) | 3.9600 |
| Coating/Finish | MEGACOAT NANO EX |
| Insert Hand | Right Hand |
| Series | MFH-Mini Milling |
| Coating Process | PVD |
| Hole Diameter (Mm) ( - 0 Decimals) | 3.4500 |
| Hole Diameter (Decimal Inch) | 0.1358 |
| Rake | Positive |
| Primary Workpiece Material | Nodular Cast Iron; Gray Cast Iron |
| Primary Workpiece Material Code | K |
| Ansi Code | LOGU030310ERGMPR1810 |
| Iso Code | LOGU030310ER-GM |
| Manufacturers Catalog Number | LOGU030310ERGMPR1810 |
| Chip Breaker | ER-GM |
| Cutting Direction | Right Hand |
| UNSPSC Code | 23291601 |
| Insert Holding Method | Screw |
| Single or Double Sided Insert | Double |
| Included Angle Degree | 90 |
| Length (mm) | 11.90 |
| Width (Decimal Inch - 4 Decimals) | 0.2441 |
| Width (mm - 2 Decimals) | 6.20 |
| Multi-Use Tool | Yes |
| Length (Decimal Inch - 4 Decimals) | 0.4685 |
| Country of Origin | Japan |
