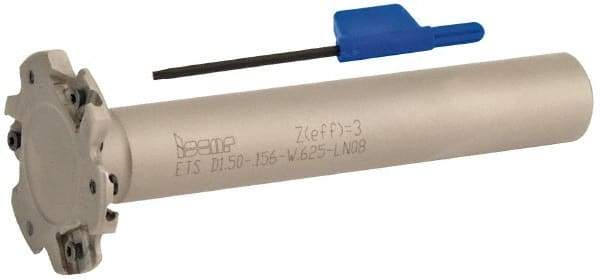

Iscar - Shank Connection, 5/32" Cutting Width, 7/16" Depth of Cut, 1-1/2" Cutter Diam, 3 Tooth Indexable Slotting Cutter - 5/8" Shank Diam, ETS-LN08 Toolholder, LNET Insert, Right Hand Cutting Direction
Item #: 62382080
Brand: Iscar
Model #: 3104982
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Connection Type | Shank |
| Cutting Width (Decimal Inch) | 0.1560 |
| Maximum Depth of Cut (Decimal Inch) | 0.4370 |
| Cutter Diameter (Decimal Inch) | 1.5000 |
| Shank Diameter (Decimal Inch) | 0.6250 |
| Number of Teeth | 3 |
| Toolholder Style | ETS-LN08 |
| Series | Mini-TangSlot(ETS-LN08) |
| Insert Style | LNET |
| Number of Cutter Inserts | 6 |
| Cutting Direction | Right Hand |
| Insert Holding Method | Screw |
| Minimum Cutting Width (Decimal Inch) | 0.1560 |
| Maximum Cutting Width (Decimal Inch) | 0.1750 |
| Cutting Radius (Inch) | 1/64 |
| Shank Length (Decimal Inch) | 3.8250 |
| Weldon Flat | Yes |
| Manufacturers Catalog Number | ETS D1.50-.156-W.625-LN08 |
| Complete Insert Compatibility1 | LNET 082604-TN-N; LNET 082804-TN-N |
