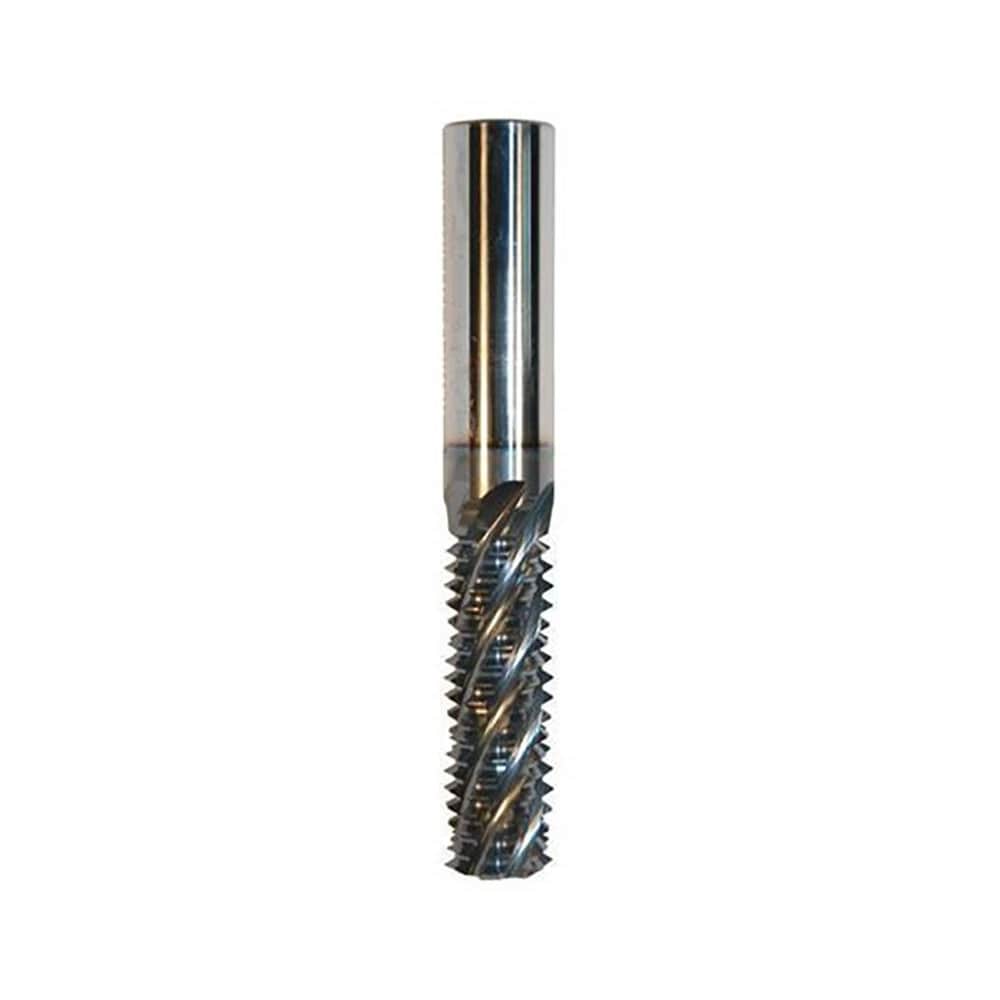

Straight Flute Thread Mill: 9/16-12, Internal, 5 Flutes, 3-3/4" Shank Dia, Solid Carbide
Item #: 81280463
Brand: Made in USA
Model #: 9161238-E2CR
Product Specifications
| Material | Solid Carbide |
| Thread Size (Inch) | 9/16-12 |
| Thread Type | Internal |
| Thread Standard | UNC |
| Shank Diameter (Inch) | 3-3/4 |
| Shank Diameter (Decimal Inch) | 3.7500 |
| Cutting Diameter (Decimal Inch) | 0.3700 |
| Minimum Nominal Diameter (Inch) | 9/16 |
| Overall Length (Decimal Inch) | 3.0000 |
| Overall Length (Inch) | 3 |
| Number Of Flutes | 5 |
| Length Of Cut (Decimal Inch - 4 Decimals) | 1.3330 |
| Coolant Through | No |
| Coating/Finish | Bright/Uncoated |
| Teeth Per Inch | 12 |
| UNSPSC Code | 23242117 |
| Country of Origin | UNITED STATES |
