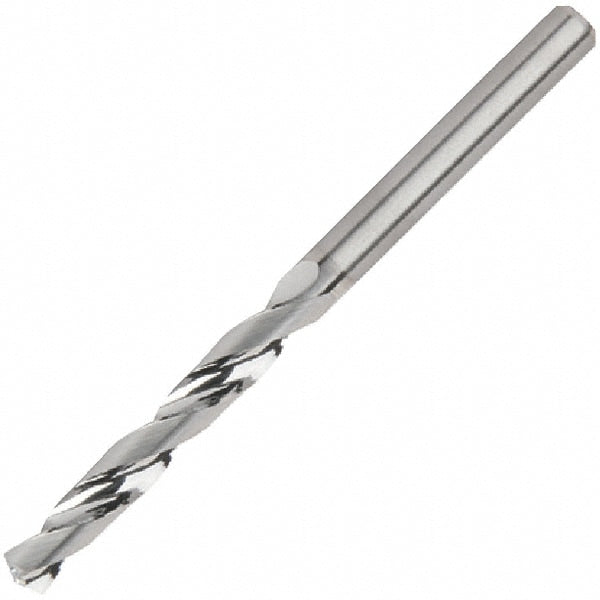

Jobber Drill: 5/8" Dia, 135 deg Point, Solid Carbide
Item #: 42638353
Brand: Kennametal
Model #: 5990997
Product Specifications
| Drill Bit Size (Inch) | 5/8 |
| Drill Bit Size (Decimal Inch) | 0.6250 |
| Drill Bit Material | Solid Carbide |
| Drill Point Angle (Degrees) | 135 |
| Coating/Finish | Bright/Uncoated |
| Flute Type | Regular Spiral |
| Cutting Direction | Right Hand |
| Primary Workpiece Material | Aluminum & Non-Ferrous |
| Coolant Through | Yes |
| Number of Flutes | 2 |
| Overall Length (mm) | 133.00 |
| Overall Length (Decimal Inch) | 5.2362 |
| Flute Length (mm) | 83.00 |
| Flute Length (Decimal Inch) | 3.2677 |
| Flute By Diameter Ratio | 5xD |
| Shank Diameter (mm) | 16 |
| Maximum Drilling Depth (mm) | 63.00 |
| Shank Length (mm) | 48 |
| Drill Point Length (mm) | 2.93 |
| Drill Bit Diameter Tolerance | 0.0003 to 0.0010 in |
| Shank Type | 3-Flat |
| Drill Bit Grade | Specialized |
| Drill Bit Size Range (Decimal Inch) | 0.5000 - 0.6500 |
| UNSPSC Code | 23241634 |
