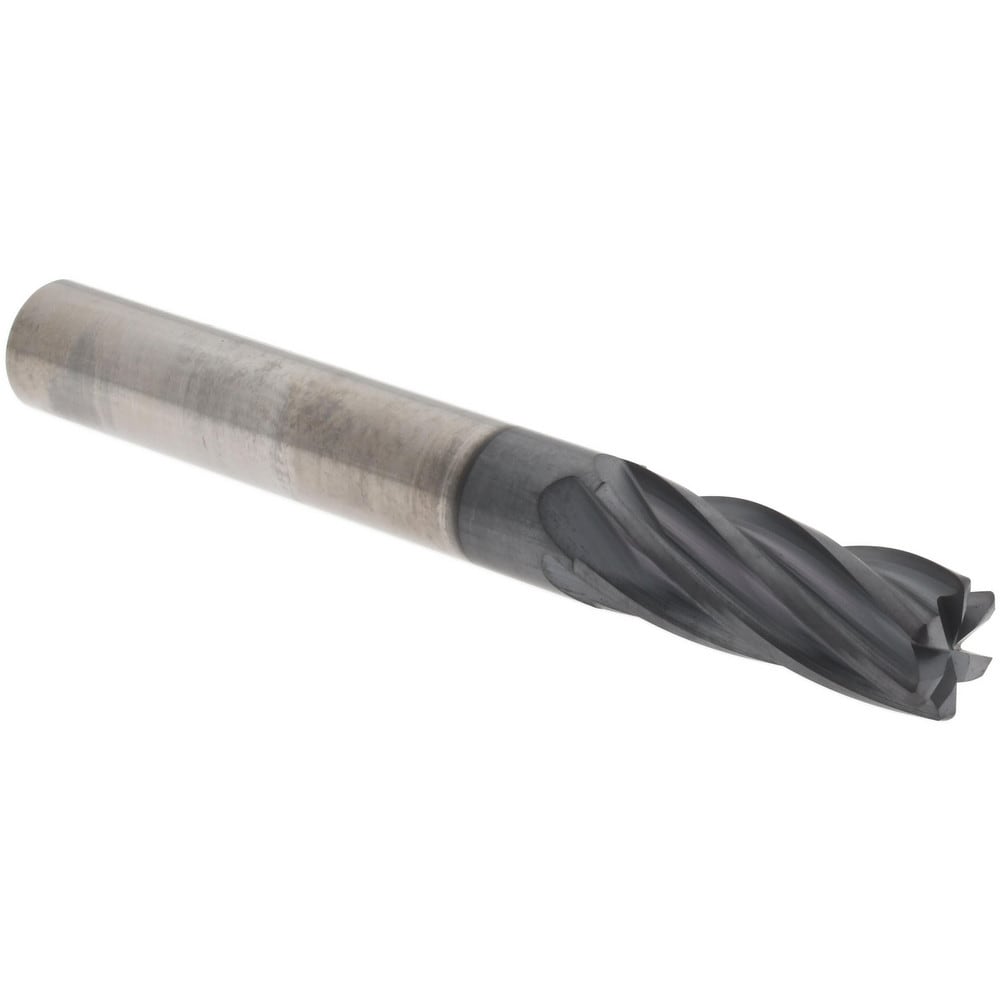

Corner Radius End Mill: 5/16" Dia, 13/16" LOC, 0.0300" Radius, 6 Flute, Solid Carbide
Item #: 53408779
Brand: Accupro
Model #: 95168651
Product Specifications
| Mill Diameter (Inch) | 5/16 |
| Mill Diameter (Decimal Inch) | 0.3125 |
| Number Of Flutes | 6 |
| Length of Cut (Inch) | 13/16 |
| Single Or Double End | Single |
| End Mill Material | Solid Carbide |
| Coating/Finish | AlTiN |
| Overall Length (Inch) | 2-1/2 |
| Centercutting | Yes |
| Flute Direction | Right Hand |
| Corner Radius (Decimal Inch) | 0.0300 |
| Variable Helix | No |
| Cutting Direction | Right Hand |
| End Type | Corner Radius |
| Length Of Cut (Decimal Inch - 4 Decimals) | 0.8125 |
| Length Type | Stub |
| Flute Type | Spiral |
| Extended Reach | No |
| Shank Diameter (Inch) | 5/16 |
| Mill Diameter Tolerance | +0.000000/-0.002000 in |
| Shank Diameter Tolerance | +0.0001/-0. 0004 in |
| UNSPSC Code | 27112803 |
| Material Grade | Micrograin |
