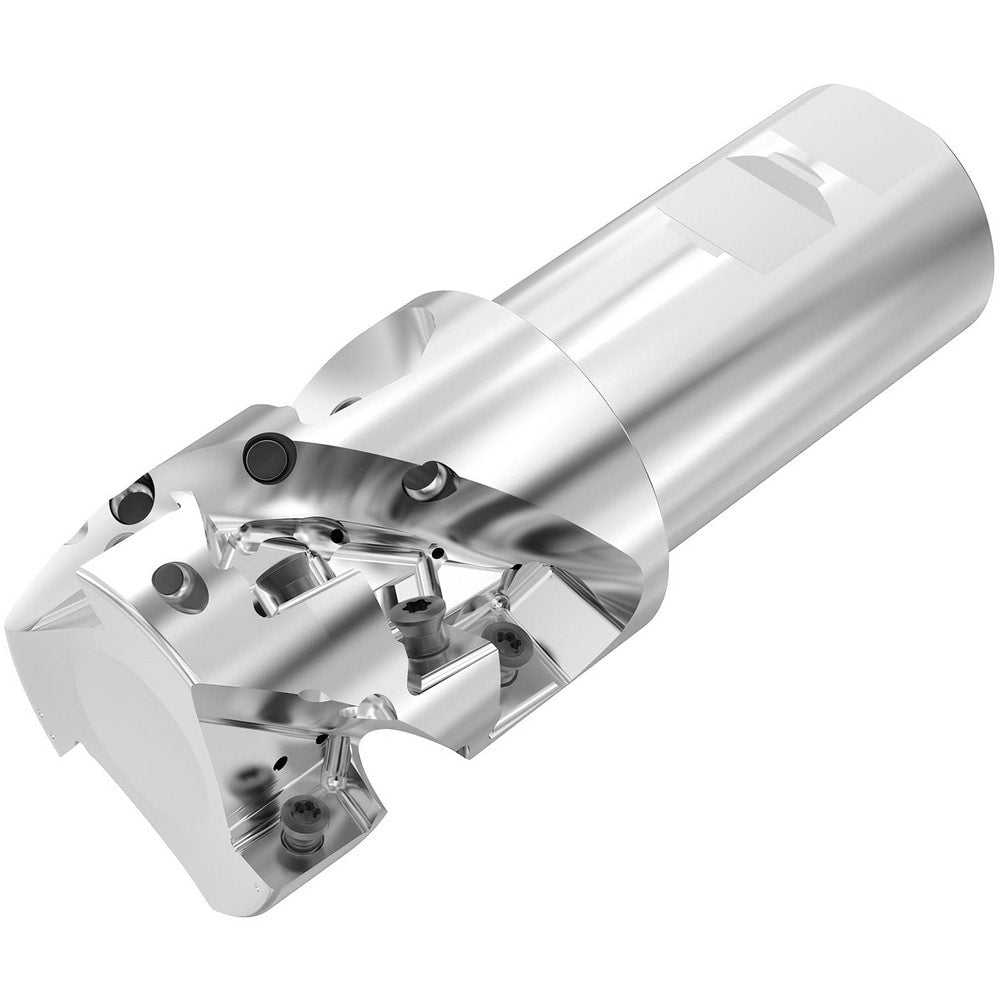

Indexable Square-Shoulder End Mill: R2178202003185SNXO163A, 1.8504" Max Depth of Cut, 1-1/2" Dia Weldon Flat Shank
Item #: 40067456
Brand: Seco
Model #: 10127485
Product Specifications
| Overall Length (Decimal Inch) | 5.1693 |
| Maximum Depth of Cut (Decimal Inch) | 1.8504 |
| Cutter Style | R217.82 |
| Shank Type | Weldon Flat |
| Shank Diameter (Inch) | 1-1/2 |
| Insert Holding Method | Screw |
| Maximum Ramping Angle | 2 |
| Tool Material | Steel |
| Series | R217.82 |
| Flute Type | Helical |
| Lead Angle | 90 |
| Shank Length (Decimal Inch) | 2.7283 |
| Head Length (Decimal Inch) | 2.3622 |
| Maximum RPM | 11800 |
| Tool Application | Slotting; Shouldering; Ramping |
| Tool Performance | General Purpose |
| Primary Workpiece Material | Universal |
| Rake | Positive |
| Complete Insert Compatibility | XOMX1605; XOEX1605; SNGU1306; SNXU1306 |
| Insert Compatibility | XOMX1605; XOEX1605; SNGU1306; SNXU1306 |
| Hand of Holder | Right Hand |
| Multi-Use Tool | Yes |
| UNSPSC Code | 27112803 |
| ISO Number | R217.82-02.00-3-1.85-SNXO16.3A |
| Number of Inserts Included in Order | 0 |
| Number Of Flutes | 3 |
| Usable Length (Decimal Inch) | 2.3622 |
| Number Of Cutter Inserts | 12 |
| Coolant Through | Yes |
