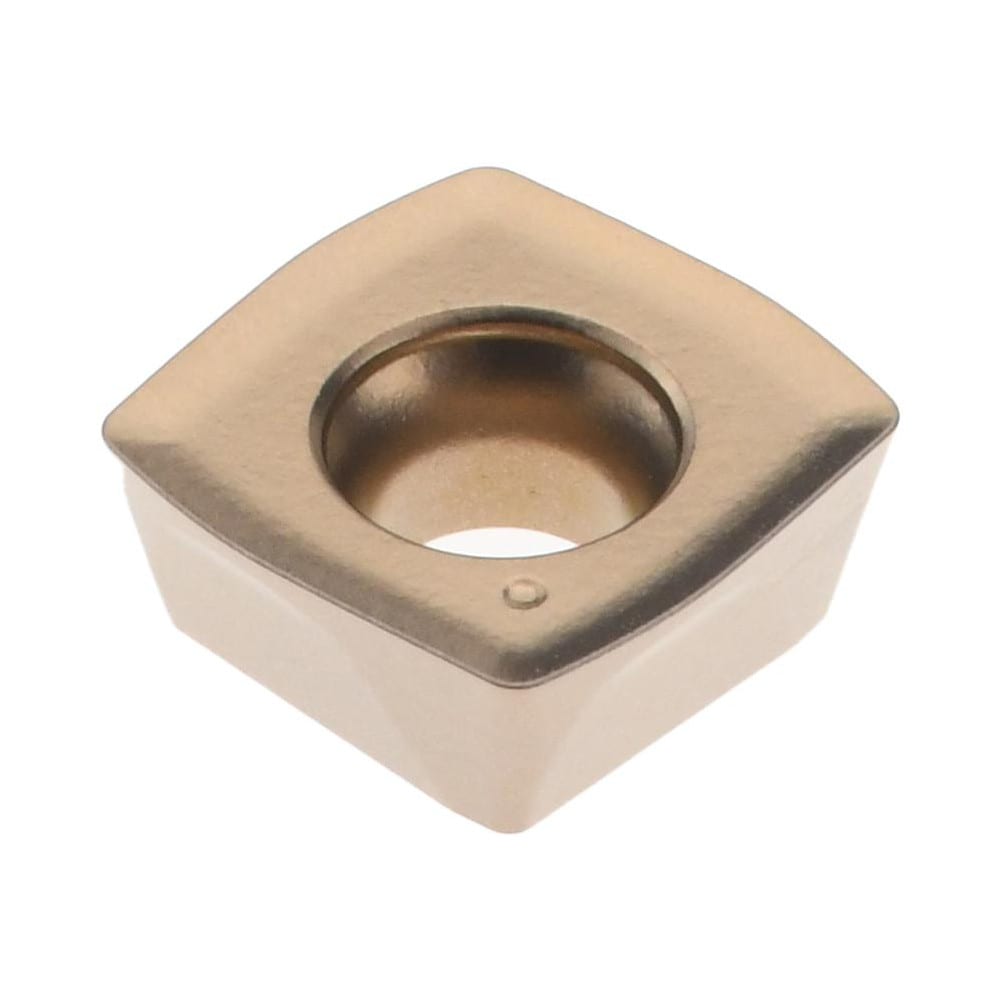

Milling Insert: XPLT070305ERSCM ACS35M, Solid Carbide
Item #: 52469889
Brand: Accupro
Model #: 52469889
Product Specifications
| Insert Style | XPLT |
| Insert Size | 07 |
| Insert Material | Solid Carbide |
| Insert Shape | Square |
| Manufacturer Grade | ACS35M |
| Corner Radius (Decimal Inch) | 0.0197 |
| Corner Radius (mm) | 0.50 |
| Number Of Cutting Edges | 4 |
| Thickness (Decimal Inch - 4 Decimals) | 0.1083 |
| Thickness (mm) | 2.7500 |
| Coating/Finish | CVD |
| Relief Angle | 11.000 |
| Insert Size Code | 07 |
| Inscribed Circle (Decimal Inch) | 0.2717 |
| Inscribed Circle (mm) | 6.90 |
| Insert Hand | Right Hand |
| Maximum Depth of Cut (Decimal Inch) | 0.0315 |
| Maximum Depth of Cut (mm) | 0.80 |
| Series | CI |
| Rake | Positive |
| Iso Code | XPLT070305ERSCM |
| Cutter Series Compatibility | XPLT |
| UNSPSC Code | 23291601 |
| Insert Holding Method | Screw |
| Single or Double Sided Insert | Single |
| Length (mm) | 6.90 |
| Width (Decimal Inch - 4 Decimals) | 0.1102 |
| Width (mm - 2 Decimals) | 2.80 |
| Length (Decimal Inch - 4 Decimals) | 0.2717 |
