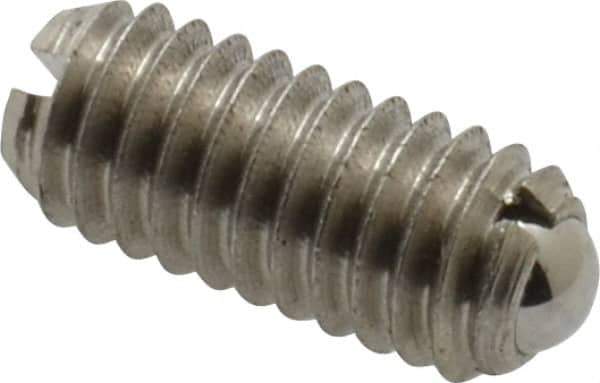

Vlier - M4x0.7, 2.5mm Ball Diam, 9mm Body Length, 0.8mm Max Ball Reach, Threaded Ball Plunger - Stainless Steel Body, Stainless Steel Ball, 0.9 Lb Initial End Force, 2.25 Lb Final End Force
Item #: 62122171
Brand: Vlier
Model #: SBM4
Exact Tooling IR#: 04
Features and Benefits
Stainless steel is a strong, corrosion-resistant alloy with excellent resistance to heat. It is used in high-stress, outdoor and corrosive applications.
Stainless steel balls are ideal for food, medical and industries where resistance from contamination is required. They are also rust and corrosion and resistant.
| Product Specifications | |
|---|---|
| Thread Size | M4x0.7 |
| Body Length (mm) | 9.00 |
| Body Length (Decimal Inch) | 0.3540 |
| Body Material | Stainless Steel |
| Ball Material | Stainless Steel |
| Initial End Force (N) | 4.00 |
| Initial End Force (Lb.) | 0.90 |
| Final End Force (N) | 10.00 |
| Final End Force (Lb.) | 2.25 |
| Locking Element | No |
| Ball Diameter (Decimal Inch) | 0.0980 |
| Ball Diameter (mm) | 2.50 |
| Maximum Ball Reach (mm) | 0.80 |
| Maximum Ball Reach (Decimal Inch) | 0.0320 |
