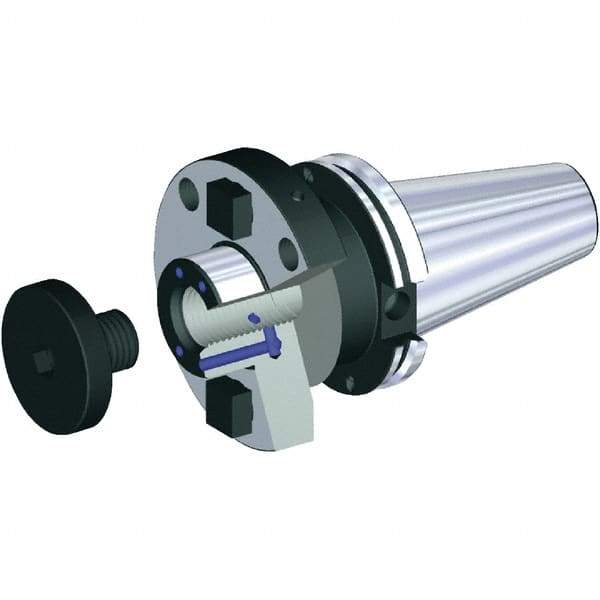

Kennametal - CVKV50 Taper Shank 3/4" Pilot Diam Shell Mill Holder - 152.4mm Flange to Nose End Projection, 44.45mm Nose Diam, Through-Spindle & DIN Flange Coolant
Item #: 62102884
Brand: Kennametal
Model #: 3861307
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Shank Type | Taper Shank |
| Taper Size | CVKV50 |
| Pilot Diameter (mm) | 19.05 |
| Pilot Diameter (Inch) | 3/4 |
| Projection Flange to Nose End (mm) | 152.40 |
| Projection Flange to Nose End (Decimal Inch) | 6.0000 |
| Through Coolant | Yes |
| Nose Diameter (mm) | 44.45 |
| Nose Diameter (Decimal Inch) | 1.7500 |
| Overall Length (mm) | 271.48 |
| Overall Length (Decimal Inch) | 10.6880 |
| Coolant Type | Through-Spindle & DIN Flange |
