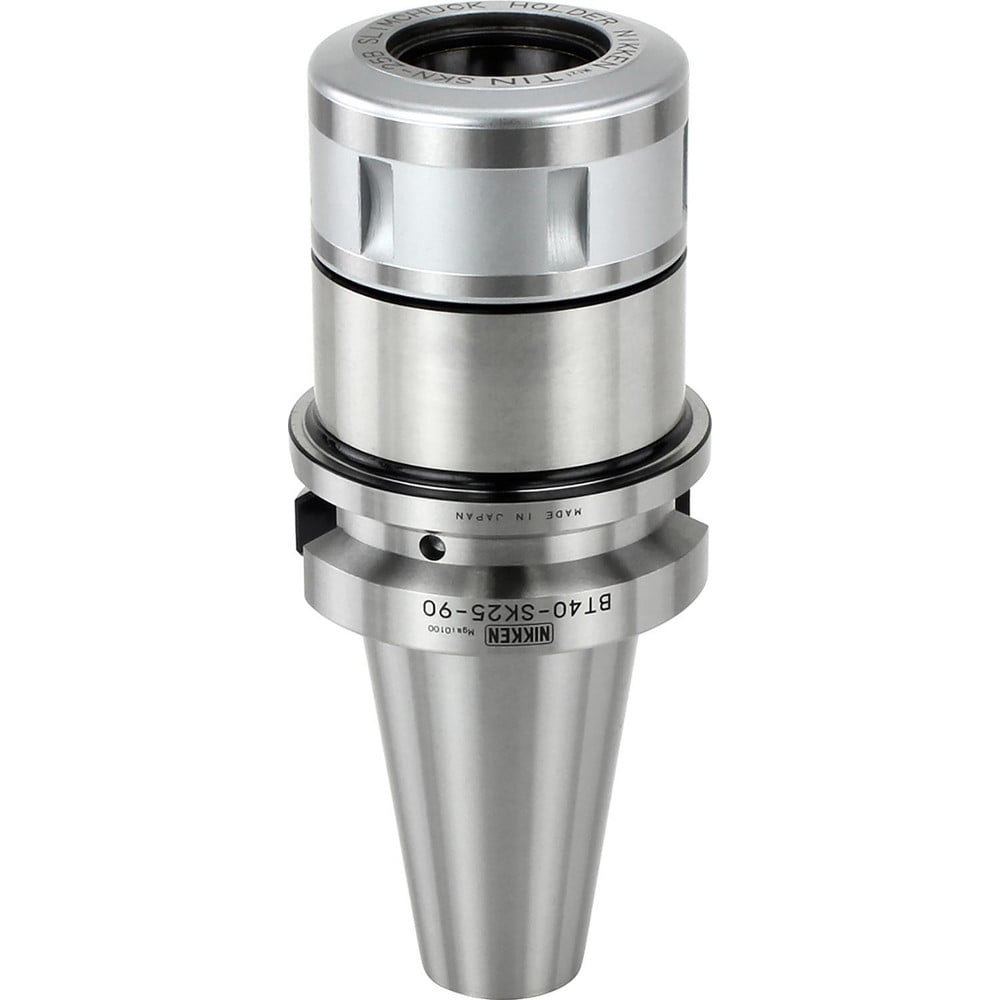

Collet Chuck: 0.1880 to 1.0000" Capacity, Slim Chuck Collet
Item #: 76431691
Brand: Lyndex-Nikken
Model #: BT40-SK25-90
Product Specifications
| Collet System | Slim Chuck |
| Collet Series | SK25 |
| Taper Size | BT40 |
| Projection (Decimal Inch) | 3.5400 in |
| Minimum Collet Capacity (Decimal Inch) | 0.1880 |
| Maximum Collet Capacity (Decimal Inch) | 1.0000 |
| Overall Length (Decimal Inch) | 3.54 |
| Nose Diameter (Decimal Inch - 4 Decimals) | 2.1700 |
| UNSPSC Code | 27112808 |
| Thread Size (mm) | M16x2 |
| Country of Origin | Japan |
