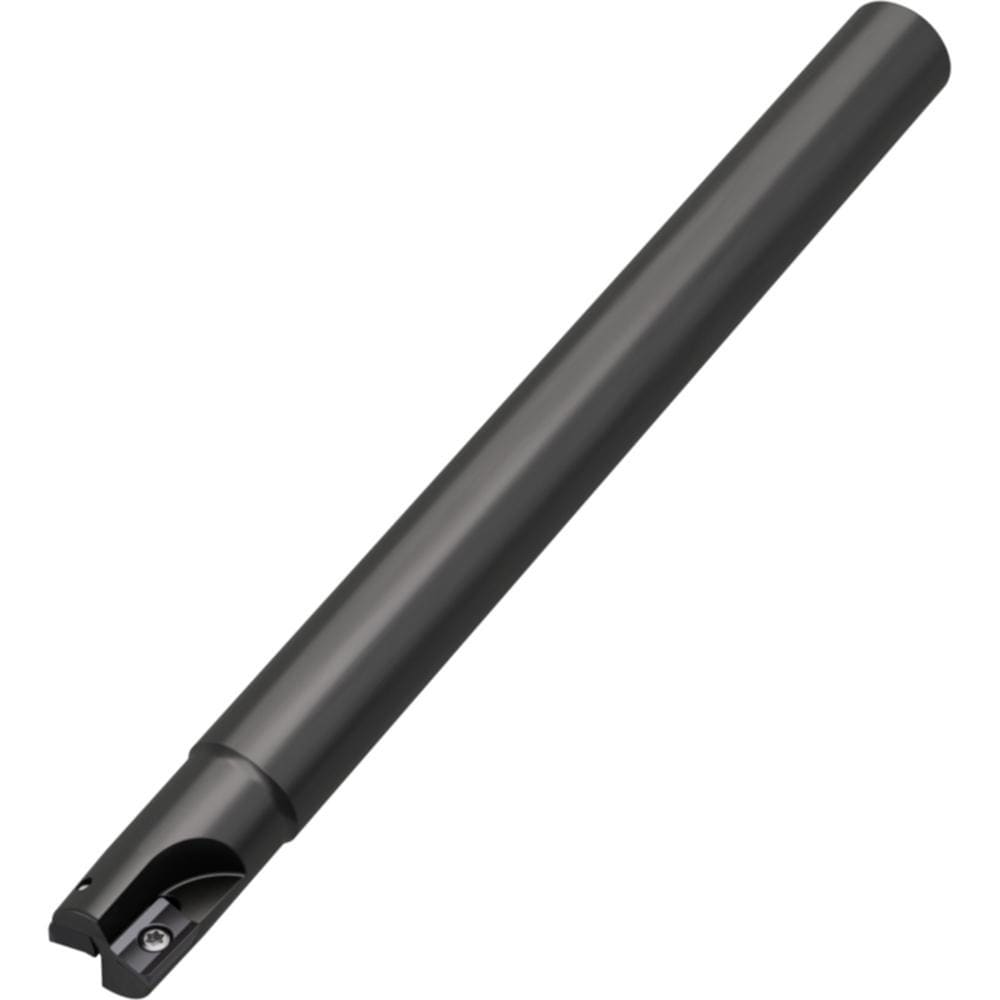

Brand: Widia / Part #: 2582447
Item #: 90210873
Brand: Widia
Model #: 2582447
Product Specifications
| Minimum Cutting Diameter | 16.00 mm |
| Maximum Cutting Diameter | 16.00 mm |
| Maximum Depth Of Cut | 9.00 mm |
| Toolholder Style | M680 |
| Shank Type | Cylindrical |
| Shank Diameter | 0.6299 |
| Compatible Insert Style | XDHT |
| Compatible Insert Size Code | 0903.. |
| Insert Holding Method | Screw |
| Number Of Cutter Inserts | 2 |
| Overall Length | 180.00 |
| Through Coolant | No |
| Series | M680-09 |
| Flute Type | Straight |
| Shank Length | 152.30 mm |
| Head Length | 25.97 mm |
| Functional Length | 25.97 mm |
| Rake | Positive |
| Projection | 25.97 mm |
| Maximum Rpm | 22000.000 |
| Tool Application | Milling |
| Tool Performance | General Purpose |
| Primary Workpiece Material | Universal |
| Number Of Flutes | 2 |
