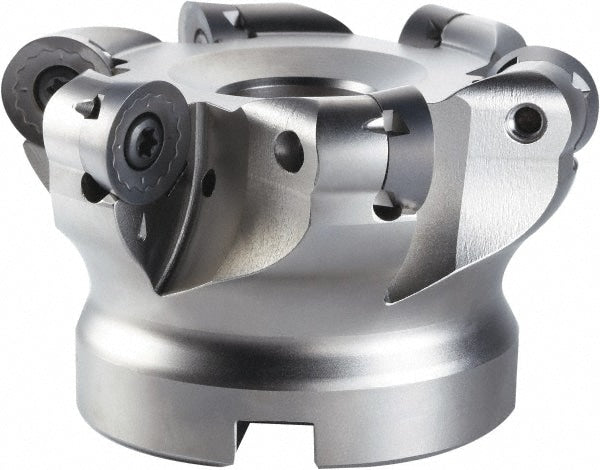

Indexable Copy Face Mill: 5" Max Cut Dia, 1-1/2" Arbor Hole
Item #: 55674196
Brand: OSG
Model #: 7800414
Product Specifications
| Cutting Diameter (Decimal Inch) | 5.0000 |
| Cutting Diameter (Inch) | 5 |
| Maximum Cutting Diameter (Decimal Inch) | 5.0000 |
| Maximum Depth of Cut (Decimal Inch) | 2.4800 |
| Arbor Hole Diameter (Inch) | 1-1/2 |
| Compatible Insert Size Code | RPH_12? |
| Cutter Style | PRC |
| Cutting Direction | Right Hand |
| Insert Holding Method | Screw |
| Series | 78004 |
| Hub Diameter (Decimal Inch) | 3.5430 |
| Keyway Width (Decimal Inch) | 0.6250 |
| Overall Height (Decimal Inch) | 2.4800 |
| Maximum RPM | 3750 |
| Insert Inscribed Circle (Decimal Inch) | 4.5280 |
| Number Of Cutter Inserts | 12 |
| Coolant Through | Yes |
| UNSPSC Code | 27112803 |
| Cutting Diameter (Decimal Inch) | 5.0000 |
| Cutting Diameter (Inch) | 5 |
| Maximum Cutting Diameter (Decimal Inch) | 5.0000 |
| Maximum Depth of Cut (Decimal Inch) | 2.4800 |
| Arbor Hole Diameter (Inch) | 1-1/2 |
| Compatible Insert Size Code | RPH_12? |
| Cutter Style | PRC |
| Cutting Direction | Right Hand |
| Insert Holding Method | Screw |
| Series | 78004 |
| Hub Diameter (Decimal Inch) | 3.5430 |
| Keyway Width (Decimal Inch) | 0.6250 |
| Overall Height (Decimal Inch) | 2.4800 |
| Maximum RPM | 3750 |
| Insert Inscribed Circle (Decimal Inch) | 4.5280 |
| Number Of Cutter Inserts | 12 |
| Coolant Through | Yes |
| UNSPSC Code | 27112803 |
| MSC Part # | 55674196 |
| Mfr Part # | 7800414 |
| Country of Origin Country of Origin is subject to change | Luxembourg |
