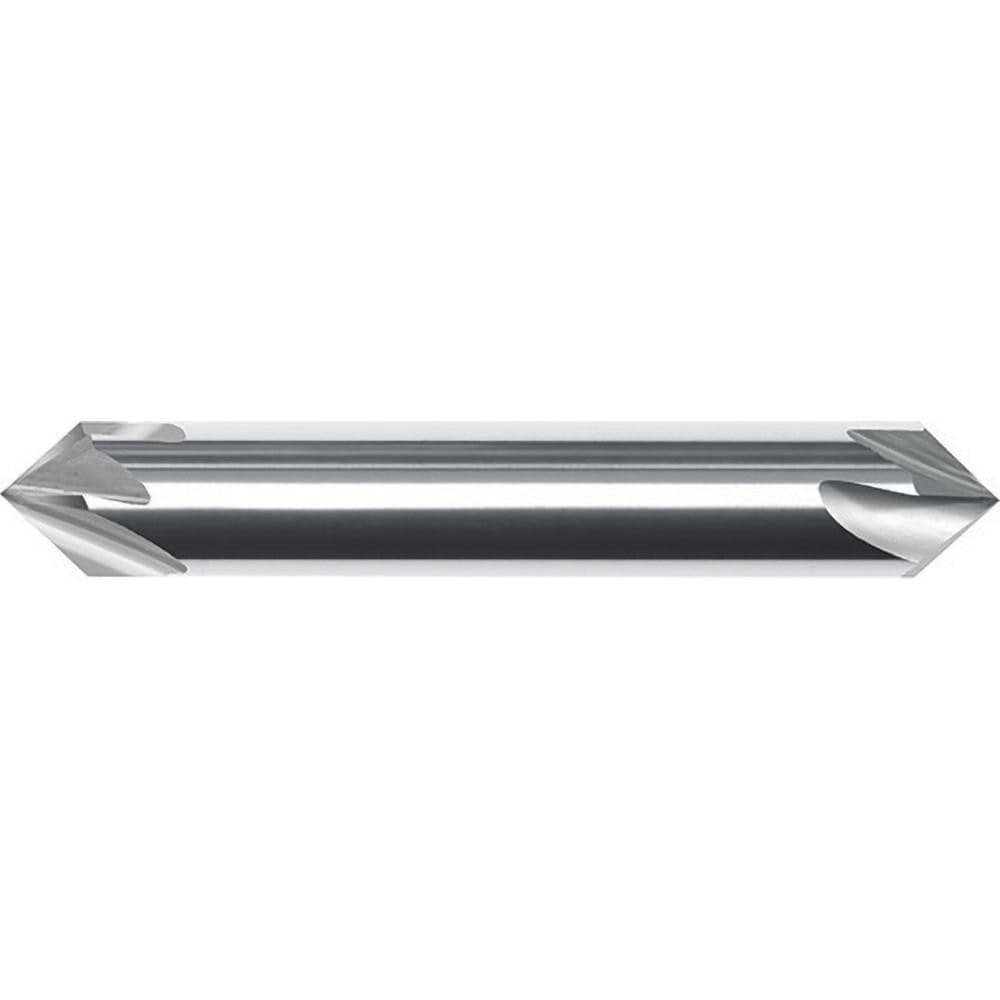

Countersink: 90 deg Included Angle, 6 Flute, Solid Carbide, Right Hand
Item #: 09132481
Brand: Internal Tool
Model #: 63-3200-C
Product Specifications
| Head Diameter (Decimal Inch) | 0.2500 |
| Head Diameter (Inch) | 1/4 |
| Centerline Angle | 45 |
| Included Angle | 90 |
| Number Of Flutes | 6 |
| Tool Material | Solid Carbide |
| Cutting Direction | Right Hand |
| Maximum Cutting Diameter (Decimal Inch) | 0.2500 |
| Maximum Cutting Diameter (Inch) | 1/4 |
| Shank Diameter (Inch) | 1/4 |
| Shank Diameter (Decimal Inch) | 0.2500 |
| Overall Length (Decimal Inch) | 2.5 |
| Overall Length (Inch) | 2-1/2 |
| Coating/Finish | AlTiN |
| Series | 63 |
| Shank Type | Straight-Cylindrical |
| Tool Application | Chamfering; Countersinking |
| Tool Performance | General Purpose |
| End Type | Double |
| Countersink Head Only | No |
| Includes Pilot | No |
| Attachment Method | Shank |
| Shank Material | Solid Carbide |
| Material Application | Non-Ferrous Metal; Stainless Steel; Cast Iron; Superalloys & Titanium; Steel |
| Material Grade | Micrograin |
| UNSPSC Code | 27112812 |
