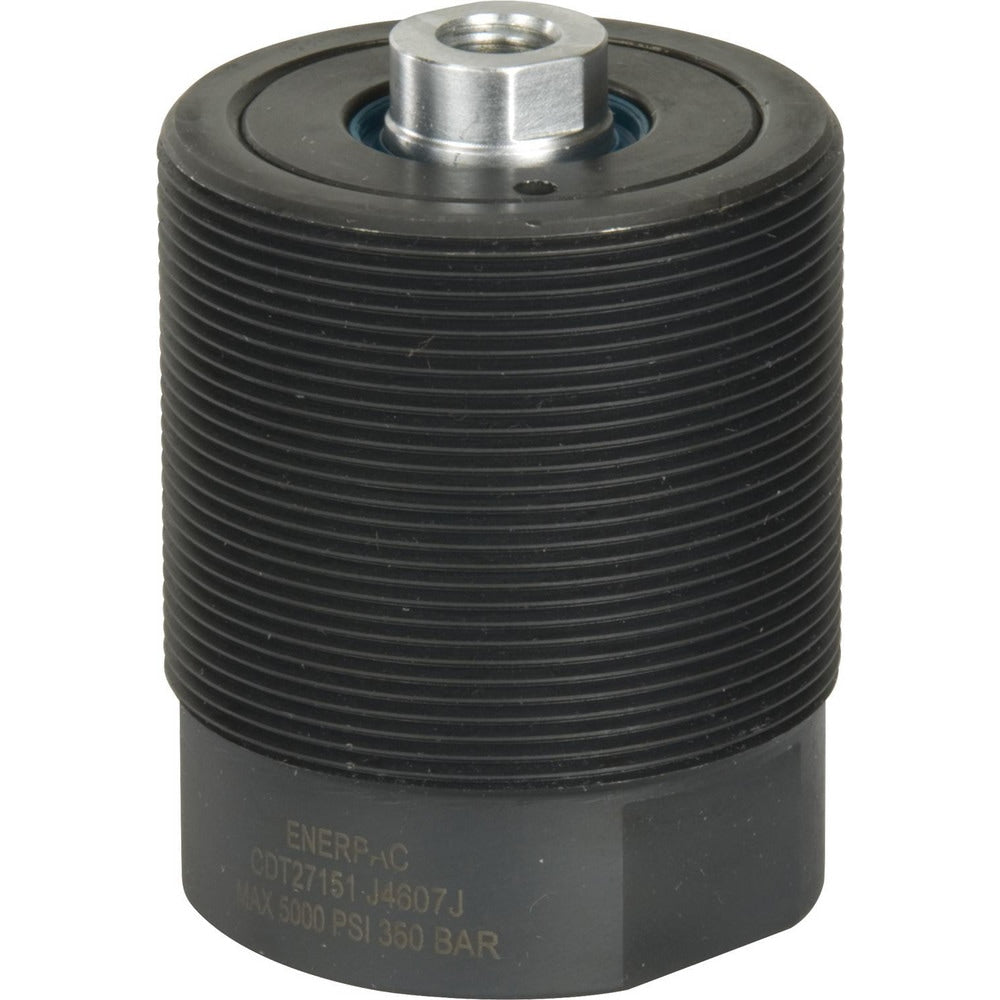

Compact Hydraulic Cylinders; Actuation: Double Acting; Rod Diameter (mm): 17.95; Body Material: Steel; Stroke Length (Decimal Inch): 0.9700; Maximum Working Pressure (Psi
Item #: 09820358
Brand: Enerpac
Model #: CDT27251
Product Specifications
| Actuation | Double Acting |
| Rod Diameter (mm) | 17.95 |
| Body Material | Steel |
| Stroke Length (Decimal Inch) | 0.9700 |
| Maximum Working Pressure (Psi - 3 Decimals) | 5000.000 |
| Port Size | SAE #4 |
| Mount Type | Threaded |
| Bore Size (mm) | 31.80 |
| Retracted Length (Decimal Inch) | 3.23 |
| Extended Length (Inch) | 4.2000 |
| Load Capacity (Lb.) | 6110 |
| UNSPSC Code | 27121602 |
