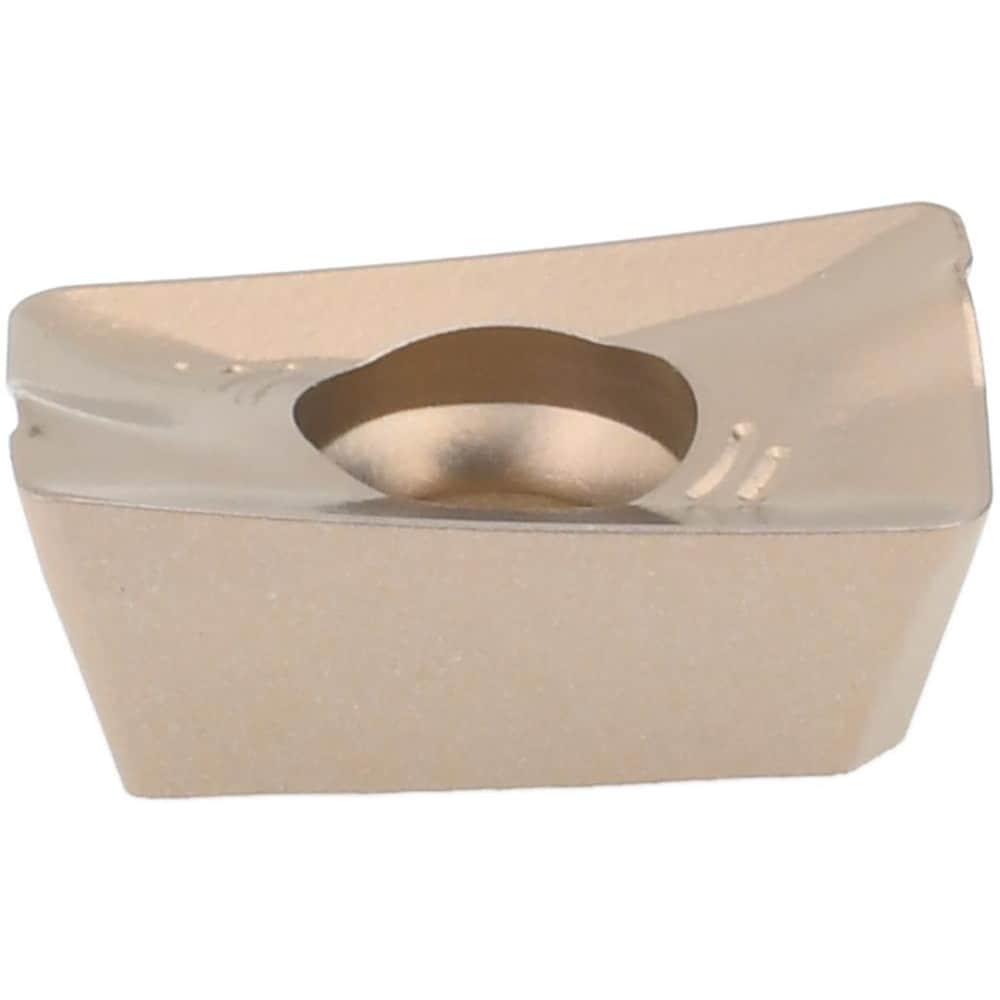

Milling Insert: ADKT1505PDERSCM ACS35M, Solid Carbide
Item #: 56460595
Brand: Accupro
Model #: 56460595
Product Specifications
| Insert Style | ADKT |
| Insert Size | 15 |
| Insert Material | Solid Carbide |
| Insert Shape | Rectangle |
| Manufacturer Grade | ACS35M |
| Corner Radius (Decimal Inch) | 0.0295 |
| Corner Radius (mm) | 0.75 |
| Number Of Cutting Edges | 2 |
| Thickness (Decimal Inch - 4 Decimals) | 0.2346 |
| Thickness (mm) | 5.9600 |
| Coating/Finish | CVD |
| Relief Angle | 14.000 |
| Insert Size Code | 15 |
| Inscribed Circle (Decimal Inch) | 0.3724 |
| Inscribed Circle (mm) | 9.46 |
| Insert Hand | Right Hand |
| Maximum Depth of Cut (Decimal Inch) | 0.5512 |
| Maximum Depth of Cut (mm) | 14.00 |
| Series | CI |
| Rake | Positive |
| Iso Code | ADKT1505PDERSCM |
| Cutter Series Compatibility | ADKT |
| UNSPSC Code | 23291601 |
| Insert Holding Method | Screw |
| Single or Double Sided Insert | Single |
| Length (mm) | 9.46 |
| Width (Decimal Inch - 4 Decimals) | 0.3720 |
| Length (Decimal Inch - 4 Decimals) | 0.3724 |
| Insert Style | ADKT |
| Insert Size | 15 |
| Insert Material | Solid Carbide |
| Insert Shape | Rectangle |
| Manufacturer Grade | ACS35M |
| Corner Radius (Decimal Inch) | 0.0295 |
| Corner Radius (mm) | 0.75 |
| Number Of Cutting Edges | 2 |
| Thickness (Decimal Inch - 4 Decimals) | 0.2346 |
| Thickness (mm) | 5.9600 |
| Coating/Finish | CVD |
| Relief Angle | 14.000 |
| Insert Size Code | 15 |
| Inscribed Circle (Decimal Inch) | 0.3724 |
| Inscribed Circle (mm) | 9.46 |
| Insert Hand | Right Hand |
| Maximum Depth of Cut (Decimal Inch) | 0.5512 |
| Maximum Depth of Cut (mm) | 14.00 |
| Series | CI |
| Rake | Positive |
| Iso Code | ADKT1505PDERSCM |
| Cutter Series Compatibility | ADKT |
| UNSPSC Code | 23291601 |
| Insert Holding Method | Screw |
| Single or Double Sided Insert | Single |
| Length (mm) | 9.46 |
| Width (Decimal Inch - 4 Decimals) | 0.3720 |
| Length (Decimal Inch - 4 Decimals) | 0.3724 |
| MSC Part # | 56460595 |
| Mfr Part # | 56460595 |
| Country of Origin Country of Origin is subject to change | VARIOUS |
