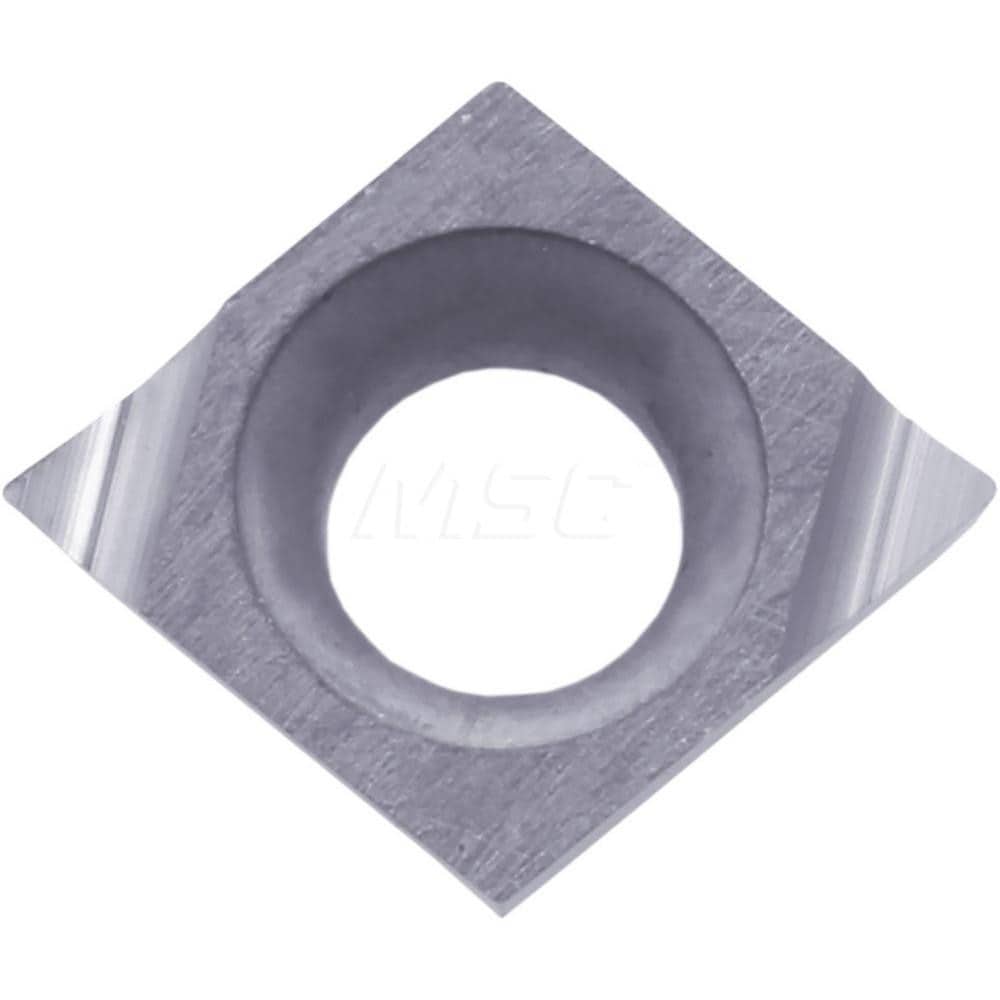

Boring Inserts; Insert Style: CCGT; Insert Size Code: 141105; Insert Material: Carbide; Material Grade: Super Micrograin; Manufacturer Grade: PR930
Item #: 18247049
Brand: Kyocera
Model #: TKT00050
Product Specifications
| Insert Style | CCGT |
| Insert Size Code | 141105 |
| Insert Material | Carbide |
| Material Grade | Super Micrograin |
| Manufacturer Grade | PR930 |
| Inscribed Circle (Decimal Inch) | 0.1690 |
| Hole Diameter (Decimal Inch) | 0.0906 |
| Insert Holding Method | Screw |
| Insert Hand | Left Hand |
| Corner Radius (Decimal Inch) | 0.0080 |
| Corner Radius (Inch) | 1/128 |
| Relief Angle | 7 |
| Rake | Positive |
| Chipbreaker | F |
| Series | ISOI |
| Coating Process | PVD |
| Included Angle | 80 |
| Insert Shape | Diamond |
| Number Of Cutting Edges | 2 |
| Primary Workpiece Material | Steel |
| Primary Workpiece Material Code | P |
| Secondary Workpiece Material | Stainless Steel |
| Secondary Workpiece Material Code | M |
| Iso Code | CCGT040102L-F |
| Rake Angle | 15 |
| Manufacturers Catalog Number | TKT00050 |
| Length (Decimal Inch - 4 Decimals) | 0.1690 |
| Width (Decimal Inch - 4 Decimals) | 0.169 |
| Coating/Finish | TiCN |
| UNSPSC Code | 23242107 |
| Maximum Depth of Cut (Decimal Inch) | 0.0563 |
| Insert Style | CCGT |
| Insert Size Code | 141105 |
| Insert Material | Carbide |
| Material Grade | Super Micrograin |
| Manufacturer Grade | PR930 |
| Inscribed Circle (Decimal Inch) | 0.1690 |
| Hole Diameter (Decimal Inch) | 0.0906 |
| Insert Holding Method | Screw |
| Insert Hand | Left Hand |
| Corner Radius (Decimal Inch) | 0.0080 |
| Corner Radius (Inch) | 1/128 |
| Relief Angle | 7 |
| Rake | Positive |
| Chipbreaker | F |
| Series | ISOI |
| Coating Process | PVD |
| Included Angle | 80 |
| Insert Shape | Diamond |
| Number Of Cutting Edges | 2 |
| Primary Workpiece Material | Steel |
| Primary Workpiece Material Code | P |
| Secondary Workpiece Material | Stainless Steel |
| Secondary Workpiece Material Code | M |
| Iso Code | CCGT040102L-F |
| Rake Angle | 15 |
| Manufacturers Catalog Number | TKT00050 |
| Length (Decimal Inch - 4 Decimals) | 0.1690 |
| Width (Decimal Inch - 4 Decimals) | 0.169 |
| Coating/Finish | TiCN |
| UNSPSC Code | 23242107 |
| Maximum Depth of Cut (Decimal Inch) | 0.0563 |
| MSC Part # | 18247049 |
| Mfr Part # | TKT00050 |
| Country of Origin Country of Origin is subject to change | VARIOUS |
