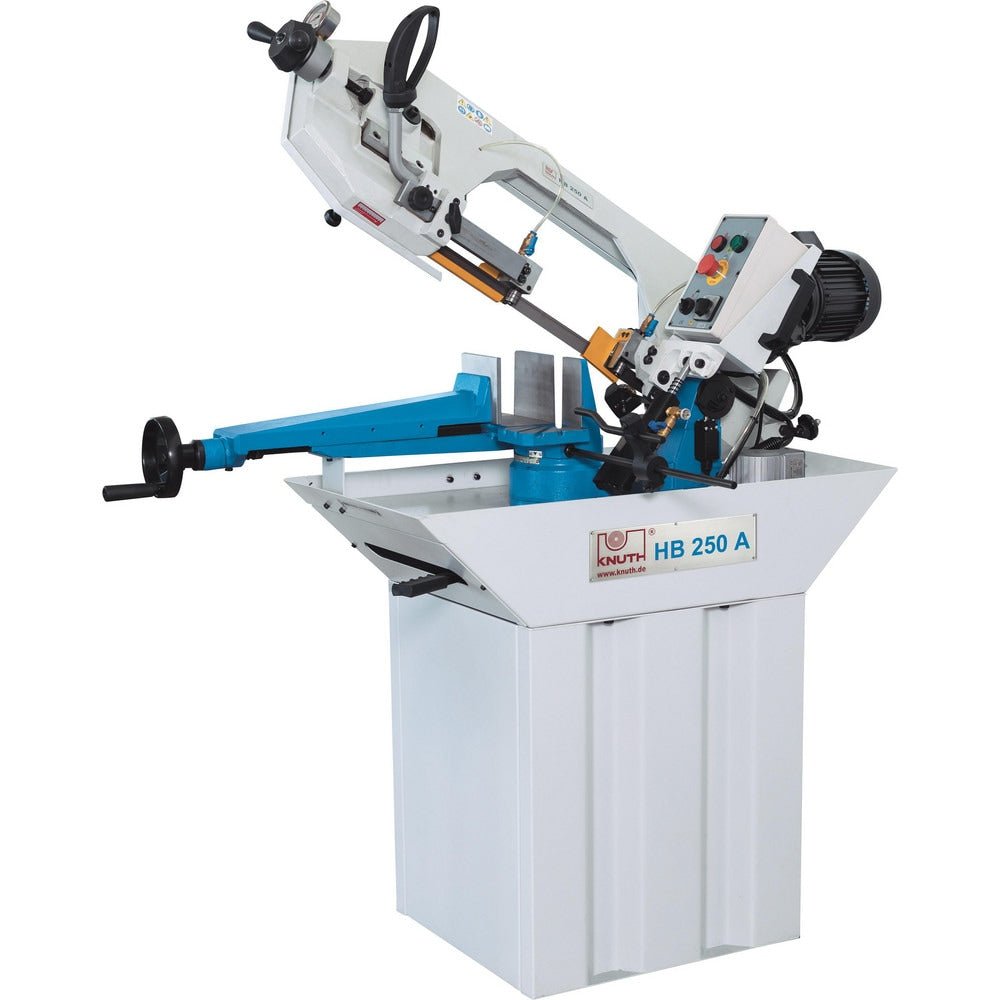

Horizontal Bandsaws; Machine Style: Manual; Drive Type: Geared Head; Angle of Rotation: 45, 90, 60; Rectangular Cutting Capacity - Horizontal At 90 Degrees: 8x6 inches; Maximum Capacity (Rectangular) (Inch): 10x7; Maximum Capacity (Rounds) (Inch): 9; Roun
Item #: 10136828
Brand: Knuth
Model #: 152796
Product Specifications
| Machine Style | Manual |
| Drive Type | Geared Head |
| Angle of Rotation | 45; 90; 60 |
| Rectangular Cutting Capacity - Horizontal At 90 Degrees | 8x6 inches |
| Maximum Capacity (Rectangular) (Inch) | 10x7 |
| Maximum Capacity (Rounds) (Inch) | 9 |
| Round Cutting Capacity - Horizontal at 90 Degrees | 9 inches |
| Minimum Blade Speed | 131 |
| Maximum Blade Speed | 295 |
| Phase | Single |
| Horsepower | 1.5000 |
| Voltage | 230V |
| Amperage | 10.0000 |
| Maximum Miter Cut Angle | 60 |
| Maximum Cutting Diameter | 9 |
| Blade Length (mm) | 2480.0000 |
| Blade Length (Feet) | 8.13 |
| Blade Length (Inch) | 97.63 |
| Blade Length (Decimal Inch) | 97.6300 |
| Blade Width | 1.06 |
| Blade Width (Decimal Inch) | 1.0600 |
| Blade Thickness (Decimal Inch) | 0.0350 |
| Base Depth (Inch) | 23 |
| Base Depth (Decimal Inch) | 23.0000 |
| Blade Guide Type | Carbide |
| Blade Brush Included | No |
| Number Of Speeds | 2-Speed |
| Frequency | 60 |
| Bed Height | 36.81 |
| Base Width (Inch) | 54.0000 |
| Coolant System | Yes |
| Features | Vise With Quick-Action Clamping Feature; Hydraulic Lowering For "A" Models; Cast-Iron Saw Frame, One-Piece Construction; Workpiece Feed Through Feed Rollers Integrated In The Vice |
| Angular Cuts at 45 Degrees (mm) | 152.40 |
| Special Item Information | Vise With Quick-Action Clamping Feature; For Miter Cuts, The Operator Moves The Saw Frame - Not The Material; Hydraulic Cylinder Provides For Infinitely Variable Support Pressure And Saw Frame Feed (HB 210 A / HB 250 A); Cast-Iron Saw Frame, One-Piece Construction |
| Angular Cuts at 60 Degrees (Inch) | 4.00 |
| Warranty | 1 Year Parts |
| UNSPSC Code | 23231100 |
