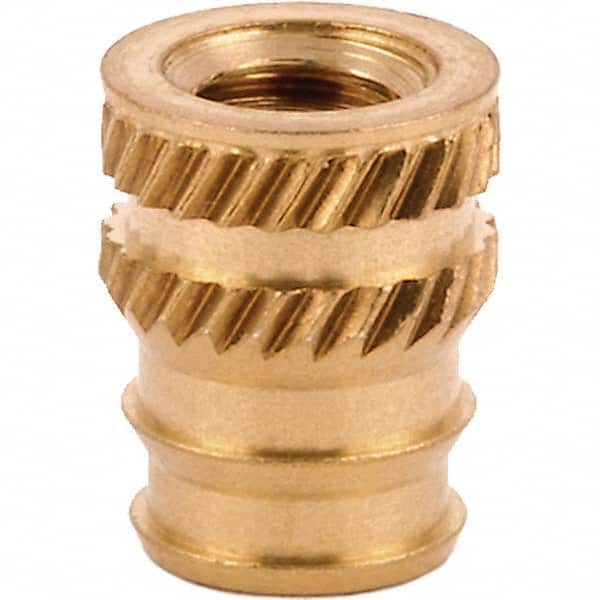

Tapered Hole Threaded Inserts; Product Type: Double Vane; System of Measurement: Metric; Thread Size (mm): M5x0.8; Overall Length (Decimal Inch): 0.4380; Thread Size: M5x0.8 mm; Insert Diameter (Decimal Inch): 0.3280; Pilot Diameter (Decimal Inch): 0.2830
Item #: 61828422
Brand: E-Z LOK
Model #: DV-M50-TH
Product Specifications
| Product Type | Double Vane |
| System of Measurement | Metric |
| Thread Size (mm) | M5x0.8 |
| Overall Length (Decimal Inch) | 0.4380 |
| Thread Size | M5x0.8 mm |
| Insert Diameter (Decimal Inch) | 0.3280 |
| Pilot Diameter (Decimal Inch) | 0.2830 |
| Insert Diameter | 0.328 in |
| Small End Hole Diameter (Decimal Inch) | 0.3150 |
| Large End Hole Diameter | 0.278 in |
| Large End Hole Diameter (Decimal Inch) | 0.2780 |
| Minimum Wall Thickness (Decimal Inch) | 0.1710 |
| Pilot Diameter | 0.283 in |
| Small End Hole Diameter | 0.315 in |
