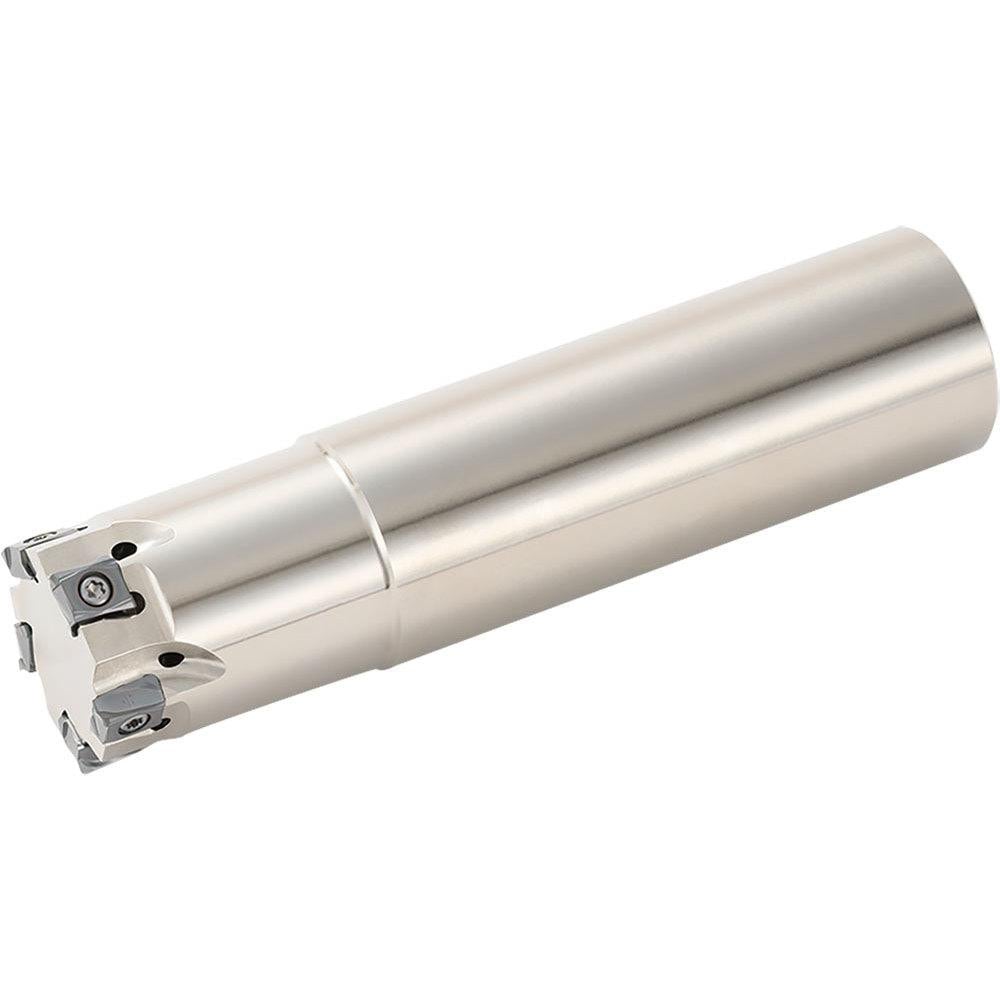

Indexable Square-Shoulder End Mill: MA9025S2009T4C, 0.3150'' Max Depth of Cut, 0.7874'' Shank Dia, Cylindrical Shank
Item #: 68866540
Brand: Kyocera
Model #: THN08688
Product Specifications
| Cutting Diameter | 0.9843 |
| Overall Length (Decimal Inch) | 1.1417 |
| Overall Length (mm) | 29.00 |
| Maximum Depth of Cut (mm) | 8.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.3150 |
| Cutter Style | Facing; Plunging; Ramping; Shouldering; Slotting; Helical Milling |
| Shank Type | Cylindrical |
| Shank Diameter (Decimal Inch) | 0.7874 |
| Insert Holding Method | Screw |
| Shank Taper Size | None |
| Maximum Ramping Angle | 0.64 |
| Tool Material | Steel |
| Series | MA90 Tangential Milling |
| Lead Angle | 90 |
| Head Length (Decimal Inch) | 4.7244 |
| Head Length (mm) | 29.00 |
| Maximum RPM | 23900.000 |
| Tool Application | Facing; Plunging; Ramping; Shouldering; Slotting; Helical |
| Tool Performance | High-Performance |
| Standards | GR99 |
| Rake | Negative (Axial); Negative (Radial) |
| Complete Insert Compatibility | LOGU0904?-GM, LOGU0904?-SM, LOGU0904?-GH |
| Insert Compatibility | LOGU0904?-GM, LOGU0904?-SM, LOGU0904?-GH |
| Hand of Holder | Right Hand |
| Rake Angle | (Radial); (Axial) |
| Multi-Use Tool | Yes |
| UNSPSC Code | 23242106 |
| ISO Number | MA90-25S20-09T4C |
| Manufacturers Catalog Number | MA9025S2009T4C |
| Number Of Flutes | 4 |
| Number Of Cutter Inserts | 4 |
| Coolant Through | Yes |
| Cutting Diameter | 0.9843 |
| Overall Length (Decimal Inch) | 1.1417 |
| Overall Length (mm) | 29.00 |
| Maximum Depth of Cut (mm) | 8.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.3150 |
| Cutter Style | Facing; Plunging; Ramping; Shouldering; Slotting; Helical Milling |
| Shank Type | Cylindrical |
| Shank Diameter (Decimal Inch) | 0.7874 |
| Insert Holding Method | Screw |
| Shank Taper Size | None |
| Maximum Ramping Angle | 0.64 |
| Tool Material | Steel |
| Series | MA90 Tangential Milling |
| Lead Angle | 90 |
| Head Length (Decimal Inch) | 4.7244 |
| Head Length (mm) | 29.00 |
| Maximum RPM | 23900.000 |
| Tool Application | Facing; Plunging; Ramping; Shouldering; Slotting; Helical |
| Tool Performance | High-Performance |
| Standards | GR99 |
| Rake | Negative (Axial); Negative (Radial) |
| Complete Insert Compatibility | LOGU0904?-GM, LOGU0904?-SM, LOGU0904?-GH |
| Insert Compatibility | LOGU0904?-GM, LOGU0904?-SM, LOGU0904?-GH |
| Hand of Holder | Right Hand |
| Rake Angle | (Radial); (Axial) |
| Multi-Use Tool | Yes |
| UNSPSC Code | 23242106 |
| ISO Number | MA90-25S20-09T4C |
| Manufacturers Catalog Number | MA9025S2009T4C |
| Number Of Flutes | 4 |
| Number Of Cutter Inserts | 4 |
| Coolant Through | Yes |
| MSC Part # | 68866540 |
| Mfr Part # | THN08688 |
| Country of Origin Country of Origin is subject to change | Japan |
