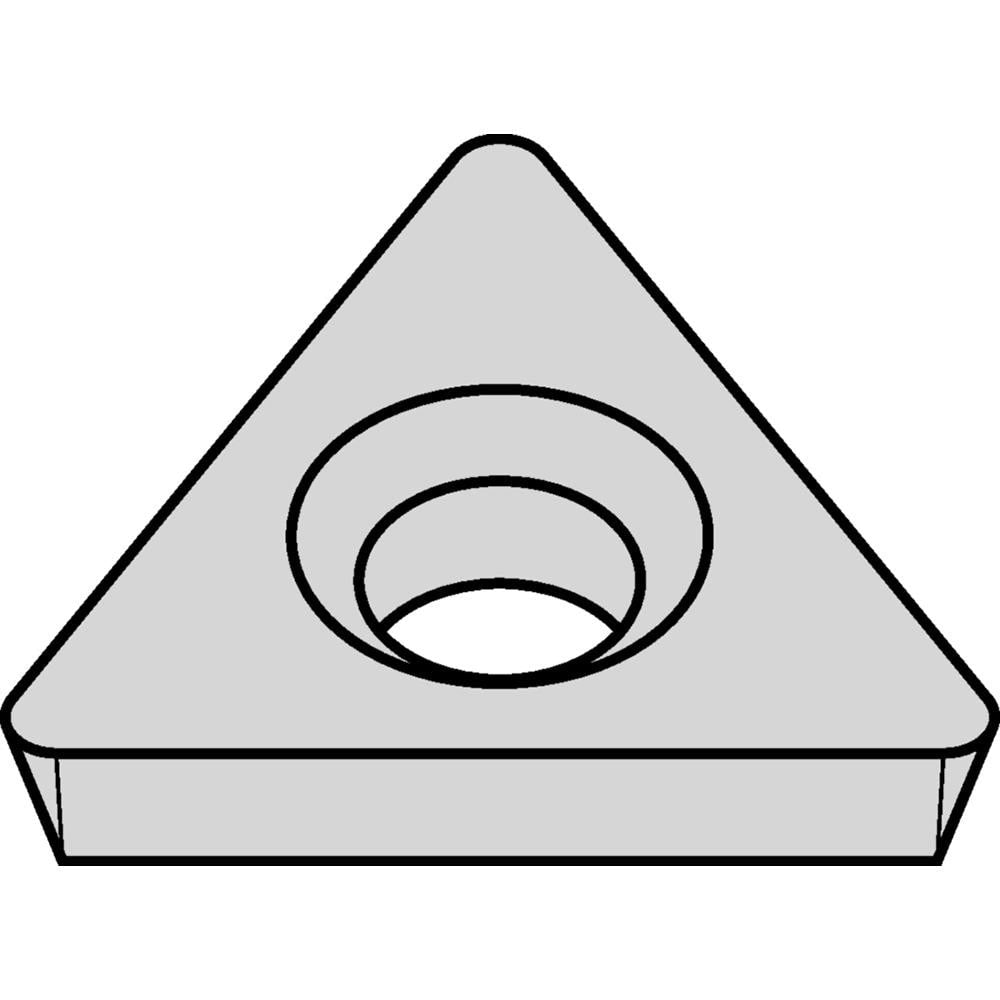

Boring Inserts; Insert Style: TDHB; Insert Size Code: 130805; Insert Material: Carbide; Material Grade: S20, M25, K05, M05, S05, K25; Manufacturer Grade: C25
Item #: 13810361
Brand: Widia
Model #: 2828732
Product Specifications
| Insert Style | TDHB |
| Insert Size Code | 130805 |
| Insert Material | Carbide |
| Material Grade | S20; M25; K05; M05; S05; K25 |
| Manufacturer Grade | C25 |
| Inscribed Circle (Decimal Inch) | 0.1600 |
| Hole Diameter (Decimal Inch) | 0.0950 |
| Insert Holding Method | Screw |
| Insert Hand | Neutral |
| Corner Radius (Decimal Inch) | 0.0070 |
| Relief Angle | 15 |
| Rake | Positive |
| Chipbreaker | Flat Top |
| Series | TDHB |
| Coating Process | Uncoated |
| Included Angle | 60 |
| Insert Shape | Triangle |
| Number Of Cutting Edges | 3 |
| Primary Workpiece Material | Non-Ferrous Metal; Cast Iron |
| Primary Workpiece Material Code | K; N |
| Secondary Workpiece Material | Stainless Steel; Super-alloys & Titanium |
| Secondary Workpiece Material Code | S; M |
| Iso Code | TDHB07S102 |
| Standards | ISO; ANSI |
| Manufacturers Catalog Number | 2828732 |
| Length (Decimal Inch - 4 Decimals) | 0.2770 |
| Width (Decimal Inch - 4 Decimals) | 0.16 |
| Coating/Finish | Bright/Uncoated |
| UNSPSC Code | 23242105 |
| Maximum Depth of Cut (Decimal Inch) | 0.0923 |
