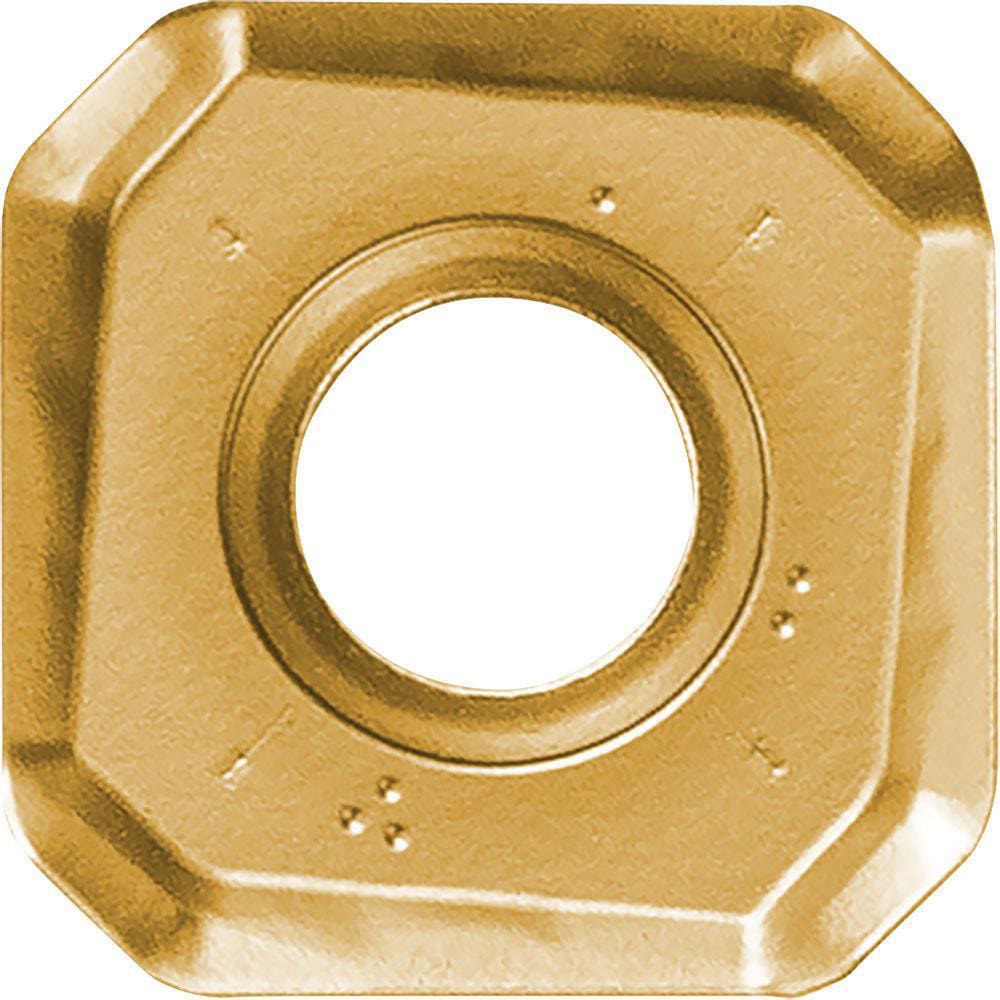

Milling Insert: SNEU1406ANER-GM CA6535, Carbide
Item #: 68862671
Brand: Kyocera
Model #: TMA40032
Product Specifications
| Insert Style | SNEU |
| Insert Size | 1406AN |
| Insert Material | Carbide |
| Insert Shape | Square |
| Manufacturer Grade | CA6535 |
| Corner Radius (Decimal Inch) | 0.0000 |
| Corner Radius (mm) | 0.00 |
| Number Of Cutting Edges | 8 |
| Thickness (Decimal Inch - 4 Decimals) | 0.2390 |
| Thickness (mm) | 6.0700 |
| Coating/Finish | TiCN/Al2O3/TiN |
| Insert Size Code | 1406AN |
| Inscribed Circle (Decimal Inch) | 0.5787 |
| Inscribed Circle (mm) | 14.70 |
| Insert Hand | Neutral |
| Maximum Depth of Cut (Decimal Inch) | 0.2362 |
| Maximum Depth of Cut (mm) | 6.00 |
| Series | MB45 45 Deg Lead Milling |
| Coating Process | CVD |
| Hole Diameter (Mm) ( - 0 Decimals) | 5.8000 |
| Hole Diameter (Decimal Inch) | 0.2284 |
| Cutting Edge Effective Length (mm) | 6.00 |
| Cutting Edge Effective Length (Decimal Inch) | 0.2362 |
| Rake | Negative |
| Ansi Code | SNEU1406ANERGMCA6535 |
| Iso Code | SNEU1406ANER-GM |
| Standards | CA6535 |
| Manufacturers Catalog Number | SNEU1406ANERGMCA6535 |
| Chip Breaker | ER-GM |
| Cutting Direction | Neutral |
| UNSPSC Code | 23291601 |
| Insert Holding Method | Screw |
| Single or Double Sided Insert | Double |
| Multi-Use Tool | Yes |
| Insert Style | SNEU |
| Insert Size | 1406AN |
| Insert Material | Carbide |
| Insert Shape | Square |
| Manufacturer Grade | CA6535 |
| Corner Radius (Decimal Inch) | 0.0000 |
| Corner Radius (mm) | 0.00 |
| Number Of Cutting Edges | 8 |
| Thickness (Decimal Inch - 4 Decimals) | 0.2390 |
| Thickness (mm) | 6.0700 |
| Coating/Finish | TiCN/Al2O3/TiN |
| Insert Size Code | 1406AN |
| Inscribed Circle (Decimal Inch) | 0.5787 |
| Inscribed Circle (mm) | 14.70 |
| Insert Hand | Neutral |
| Maximum Depth of Cut (Decimal Inch) | 0.2362 |
| Maximum Depth of Cut (mm) | 6.00 |
| Series | MB45 45 Deg Lead Milling |
| Coating Process | CVD |
| Hole Diameter (Mm) ( - 0 Decimals) | 5.8000 |
| Hole Diameter (Decimal Inch) | 0.2284 |
| Cutting Edge Effective Length (mm) | 6.00 |
| Cutting Edge Effective Length (Decimal Inch) | 0.2362 |
| Rake | Negative |
| Ansi Code | SNEU1406ANERGMCA6535 |
| Iso Code | SNEU1406ANER-GM |
| Standards | CA6535 |
| Manufacturers Catalog Number | SNEU1406ANERGMCA6535 |
| Chip Breaker | ER-GM |
| Cutting Direction | Neutral |
| UNSPSC Code | 23291601 |
| Insert Holding Method | Screw |
| Single or Double Sided Insert | Double |
| Multi-Use Tool | Yes |
| MSC Part # | 68862671 |
| Mfr Part # | TMA40032 |
| Country of Origin Country of Origin is subject to change | Japan |
