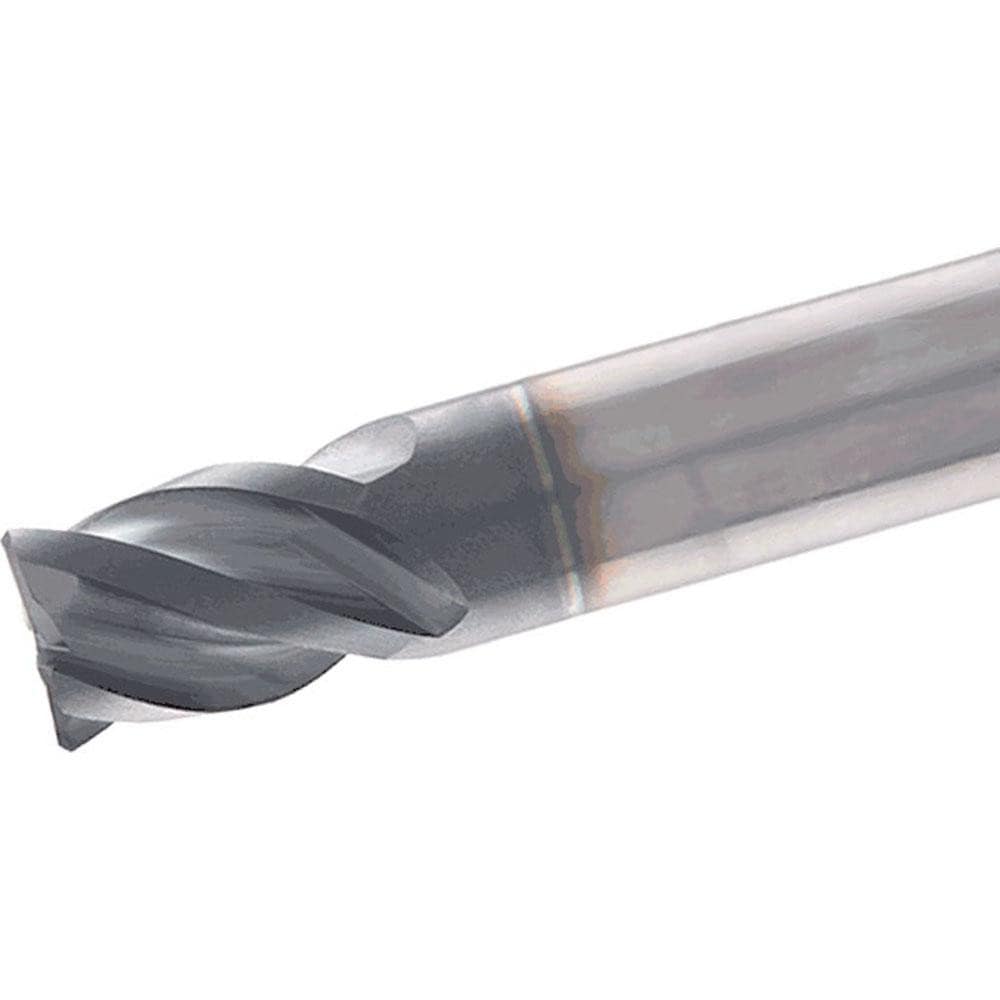

Corner Chamfer End Mill: 6.00 mm Dia, 6.00 mm LOC, 4 Flute, 0.25 mm Chamfer Width, Solid Carbide
Item #: 56958895
Brand: Tungaloy
Model #: 3302404
Product Specifications
| Mill Diameter (mm) | 6.00 |
| Number Of Flutes | 4 |
| Length of Cut (mm) | 6.00 |
| Single Or Double End | Single |
| End Mill Material | Solid Carbide |
| Chipbreaker | No |
| Coating/Finish | TiAlN |
| Centercutting | Yes |
| Flute Direction | Right Hand |
| Cutting Direction | Right Hand |
| Chamfer Width (mm) | 0.25 |
| Overall Length (mm) | 50.00 |
| Coolant Through | No |
| Chamfer Angle | 45 |
| Length Type | Short |
| Extended Reach | No |
| Shank Type | Straight-Cylindrical |
| Shank Diameter (mm) | 6.00 |
| Primary Workpiece Material | Stainless Steel; Cast Iron; Superalloys & Titanium; Steel |
| UNSPSC Code | 27112803 |
| Primary Workpiece Material Code | P; S; K; M |
| Material Grade | AH725 |
| Series | TEC-H4S-CF-E |
