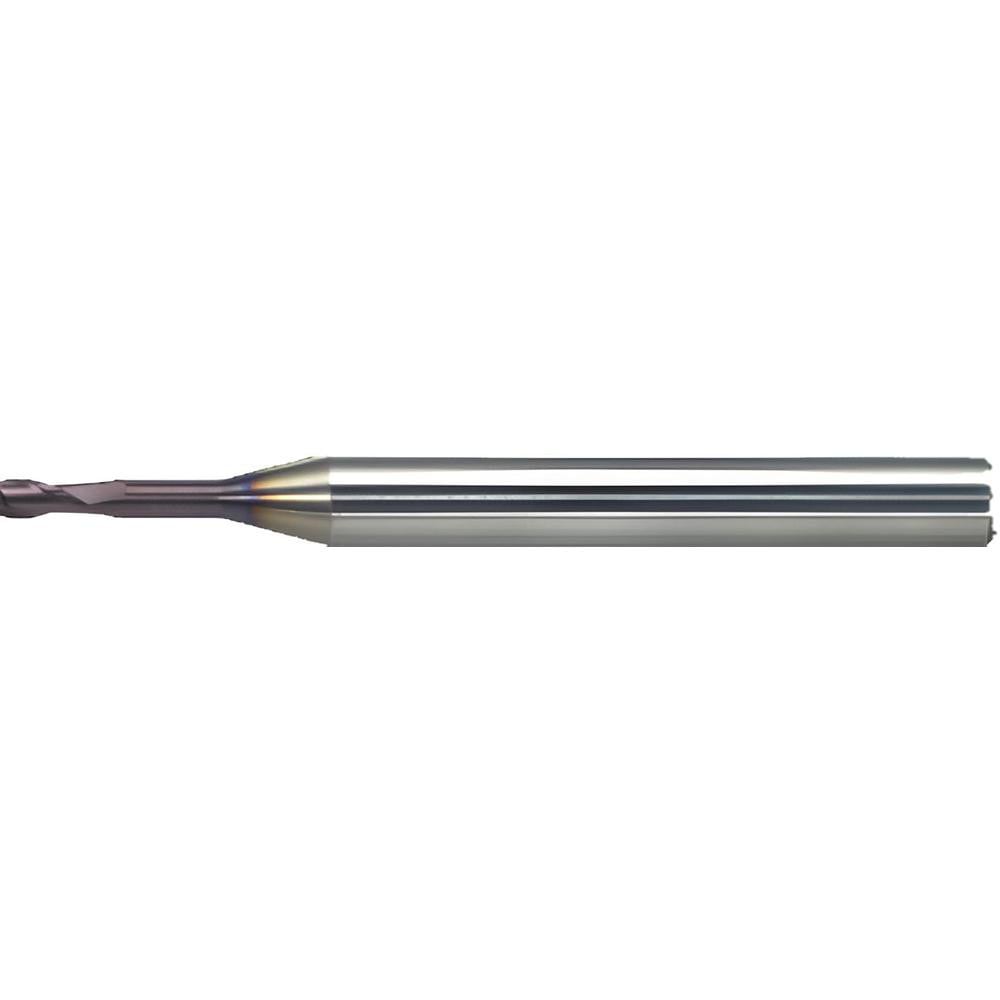

Square End Mill: 1.50 mm Dia, 2.30 mm LOC, 2 Flute, Solid Carbide
Item #: 09028176
Brand: Mitsubishi
Model #: 219192
Product Specifications
| Mill Diameter (mm) | 1.50 |
| Mill Diameter (Decimal Inch) | 0.0591 |
| Number Of Flutes | 2 |
| End Mill Material | Solid Carbide |
| Length of Cut (Decimal Inch) | 0.0906 |
| Length of Cut (mm) | 2.30 |
| Shank Diameter (mm) | 6.00 |
| Shank Diameter (Decimal Inch) | 0.2362 |
| Overall Length (mm) | 50.00 |
| Overall Length (Decimal Inch) | 1.9685 |
| Single Or Double End | Single |
| Coating/Finish Family | AlTiN |
| Centercutting | No |
| Cutting Direction | Right Hand |
| Flute Direction | Right Hand |
| Extended Reach | Yes |
| Coolant Through | No |
| Helix Angle | 30 |
| Primary Workpiece Material | Cast Iron; Steel |
| Primary Workpiece Material Code | P; K |
| Secondary Workpiece Material | Aluminum & Non-Ferrous; High-Temp Alloy; Stainless Steel; Hardened Materials |
| Secondary Workpiece Material Code | S; H; M; N |
| Coating/Finish | AlTiN |
| Variable Helix | No |
| Variable Index | No |
| Chipbreaker | No |
| Flute Type | Helical |
| Shank Type | Straight |
| Material Grade | Carbide |
| Length Type | Long |
| Neck Length (Decimal Inch) | 0.1496 |
| Neck Length (mm) | 3.80 |
| Neck Diameter (Decimal Inch) | 0.0567 |
| Neck Diameter (mm) | 1.44 |
| Mill Diameter Tolerance | 0; -0.020 |
| Shank Diameter Tolerance | h6 |
| Series | M-Star Endmill MS2XL |
| System Of Measurement | Metric |
| UNSPSC Code | 27112803 |
