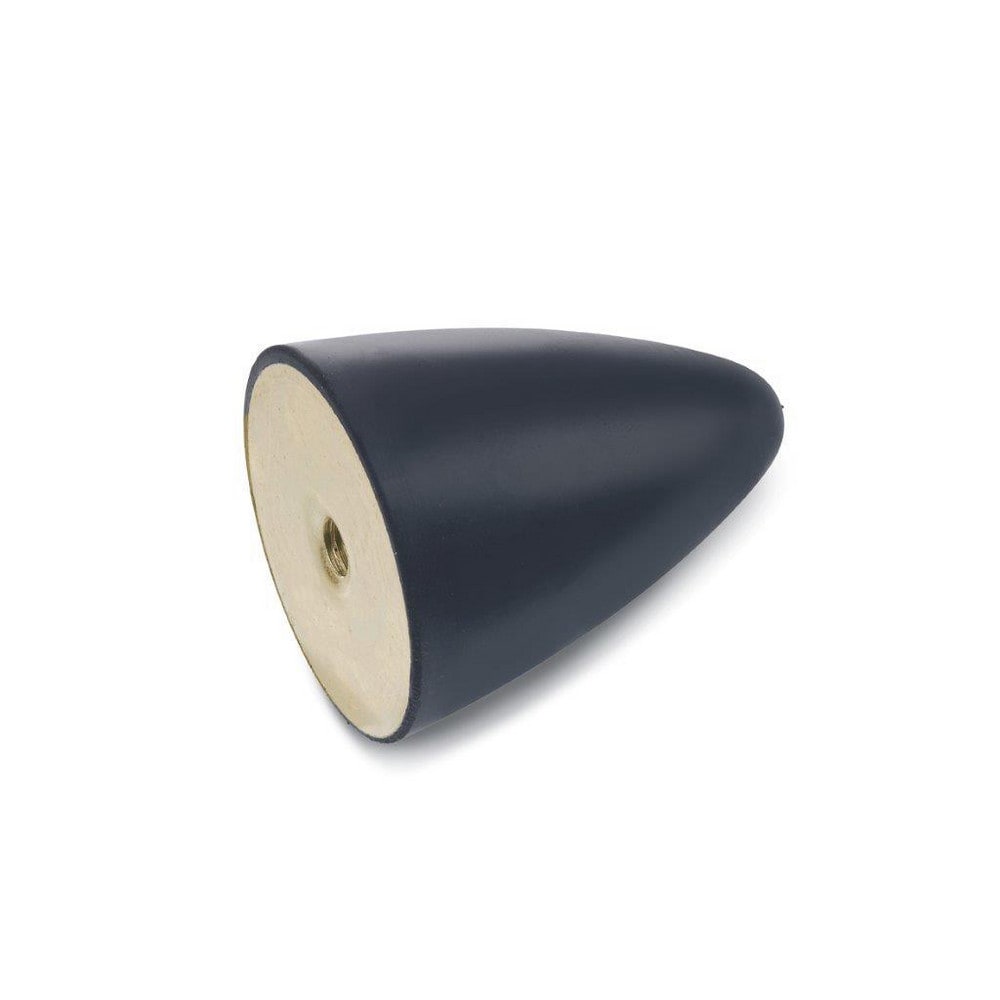

Vibration Isolators; Isolator Type: Plate/Plate; Insert Material: Zinc-Plated Steel; Isolator Material: Natural Rubber; Maximum Load Capacity: 97.86 N; Top Diameter: 19.00; Thread Size: 1/4-20; Overall Width: 19 mm
Item #: 71027155
Brand: J.W. Winco
Model #: 353.2-19-25-1/4-55
Product Specifications
| Isolator Type | Plate/Plate |
| Insert Material | Zinc-Plated Steel |
| Isolator Material | Natural Rubber |
| Maximum Load Capacity | 97.86 N |
| Top Diameter | 19.00 |
| Thread Size | 1/4-20 |
| Overall Width | 19 mm |
| Overall Diameter | 19 mm |
| Deflection | 0.2400 |
| Hardness Rating | Shore 55A |
| Mount Type | Plate |
| Shape | Round |
| Thread Depth | 6.0000 |
| Thread Pitch | 1.270 mm |
| Thread Standard | UNC |
| Height (Decimal Inch) | 25 mm |
| UNSPSC Code | 23153130 |
| Isolator Type | Plate/Plate |
| Insert Material | Zinc-Plated Steel |
| Isolator Material | Natural Rubber |
| Maximum Load Capacity | 97.86 N |
| Top Diameter | 19.00 |
| Thread Size | 1/4-20 |
| Overall Width | 19 mm |
| Overall Diameter | 19 mm |
| Deflection | 0.2400 |
| Hardness Rating | Shore 55A |
| Mount Type | Plate |
| Shape | Round |
| Thread Depth | 6.0000 |
| Thread Pitch | 1.270 mm |
| Thread Standard | UNC |
| Height (Decimal Inch) | 25 mm |
| UNSPSC Code | 23153130 |
| MSC Part # | 71027155 |
| Mfr Part # | 353.2-19-25-1/4-55 |
| Country of Origin Country of Origin is subject to change | Hungary |
