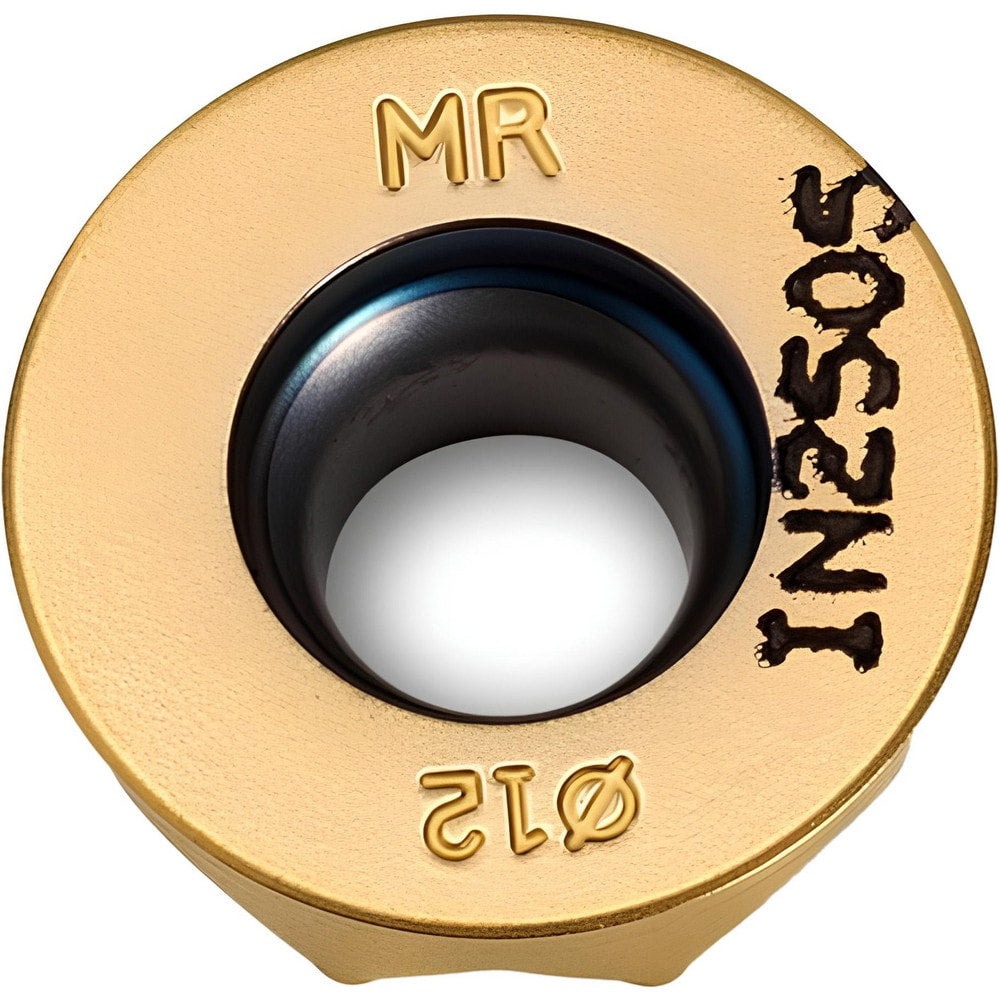

Milling Insert: RJLW1204MOTN IN2505 IN2505, Solid Carbide
Item #: 67324715
Brand: Ingersoll Cutting Tools
Model #: 5613019
Product Specifications
| Insert Style | RJLW |
| Insert Size | 12 |
| Insert Material | Solid Carbide |
| Insert Shape | Round |
| Manufacturer Grade | IN2505 |
| Corner Radius (Decimal Inch) | 0.2362 |
| Corner Radius (mm) | 6.00 |
| Number Of Cutting Edges | 4 |
| Thickness (Decimal Inch - 4 Decimals) | 0.1890 |
| Coating/Finish | TiN; TiAlN |
| Insert Size Code | 1204 |
| Material Grade | Micrograin |
| Inscribed Circle (Decimal Inch) | 0.4724 |
| Inscribed Circle (mm) | 12.00 |
| Thickness Range (Decimal Inch) | 0.1850 to 0.2000 |
| Inscribed Circle Range (Decimal Inch) | 0.4000 to 0.5000 |
| Length Range (Decimal Inch) | 0.4500 to 0.5000 |
| Insert Hand | Neutral |
| Maximum Depth of Cut (mm) | 6.00 |
| Series | RJLW |
| Coating Process | PVD |
| Rake | Positive |
| Primary Workpiece Material | Hard Material; Stainless Steel; Cast Iron; Superalloys & Titanium; Steel |
| Primary Workpiece Material Code | P; S; H; K; M |
| Ansi Code | RJLW1204MOTN IN2505 |
| Iso Code | RJLW1204MOTN IN2505 |
| Standards | ISO; ANSI |
| Cutting Edge Style | Chamfered |
| Manufacturers Catalog Number | 5613019 |
| Cutter Series Compatibility | 15B1B; 35B6H; 1A7H |
| Chip Breaker | None |
| UNSPSC Code | 23291601 |
| Material Application | Hard Material; Stainless Steel; Cast Iron; Superalloys & Titanium; Steel |
| Length of Cut (mm) | 6.0000 |
| Insert Holding Method | Screw |
| Coating Classification | PVD |
| Single or Double Sided Insert | Single |
| Included Angle Degree | 360 |
| Length (mm) | 12.00 |
| Width (Decimal Inch - 4 Decimals) | 0.4724 |
| Width (mm - 2 Decimals) | 12.00 |
| Multi-Use Tool | No |
| Length (Decimal Inch - 4 Decimals) | 0.4724 |
| Insert Style | RJLW |
| Insert Size | 12 |
| Insert Material | Solid Carbide |
| Insert Shape | Round |
| Manufacturer Grade | IN2505 |
| Corner Radius (Decimal Inch) | 0.2362 |
| Corner Radius (mm) | 6.00 |
| Number Of Cutting Edges | 4 |
| Thickness (Decimal Inch - 4 Decimals) | 0.1890 |
| Coating/Finish | TiN; TiAlN |
| Insert Size Code | 1204 |
| Material Grade | Micrograin |
| Inscribed Circle (Decimal Inch) | 0.4724 |
| Inscribed Circle (mm) | 12.00 |
| Thickness Range (Decimal Inch) | 0.1850 to 0.2000 |
| Inscribed Circle Range (Decimal Inch) | 0.4000 to 0.5000 |
| Length Range (Decimal Inch) | 0.4500 to 0.5000 |
| Insert Hand | Neutral |
| Maximum Depth of Cut (mm) | 6.00 |
| Series | RJLW |
| Coating Process | PVD |
| Rake | Positive |
| Primary Workpiece Material | Hard Material; Stainless Steel; Cast Iron; Superalloys & Titanium; Steel |
| Primary Workpiece Material Code | P; S; H; K; M |
| Ansi Code | RJLW1204MOTN IN2505 |
| Iso Code | RJLW1204MOTN IN2505 |
| Standards | ISO; ANSI |
| Cutting Edge Style | Chamfered |
| Manufacturers Catalog Number | 5613019 |
| Cutter Series Compatibility | 15B1B; 35B6H; 1A7H |
| Chip Breaker | None |
| UNSPSC Code | 23291601 |
| Material Application | Hard Material; Stainless Steel; Cast Iron; Superalloys & Titanium; Steel |
| Length of Cut (mm) | 6.0000 |
| Insert Holding Method | Screw |
| Coating Classification | PVD |
| Single or Double Sided Insert | Single |
| Included Angle Degree | 360 |
| Length (mm) | 12.00 |
| Width (Decimal Inch - 4 Decimals) | 0.4724 |
| Width (mm - 2 Decimals) | 12.00 |
| Multi-Use Tool | No |
| Length (Decimal Inch - 4 Decimals) | 0.4724 |
| MSC Part # | 67324715 |
| Mfr Part # | 5613019 |
