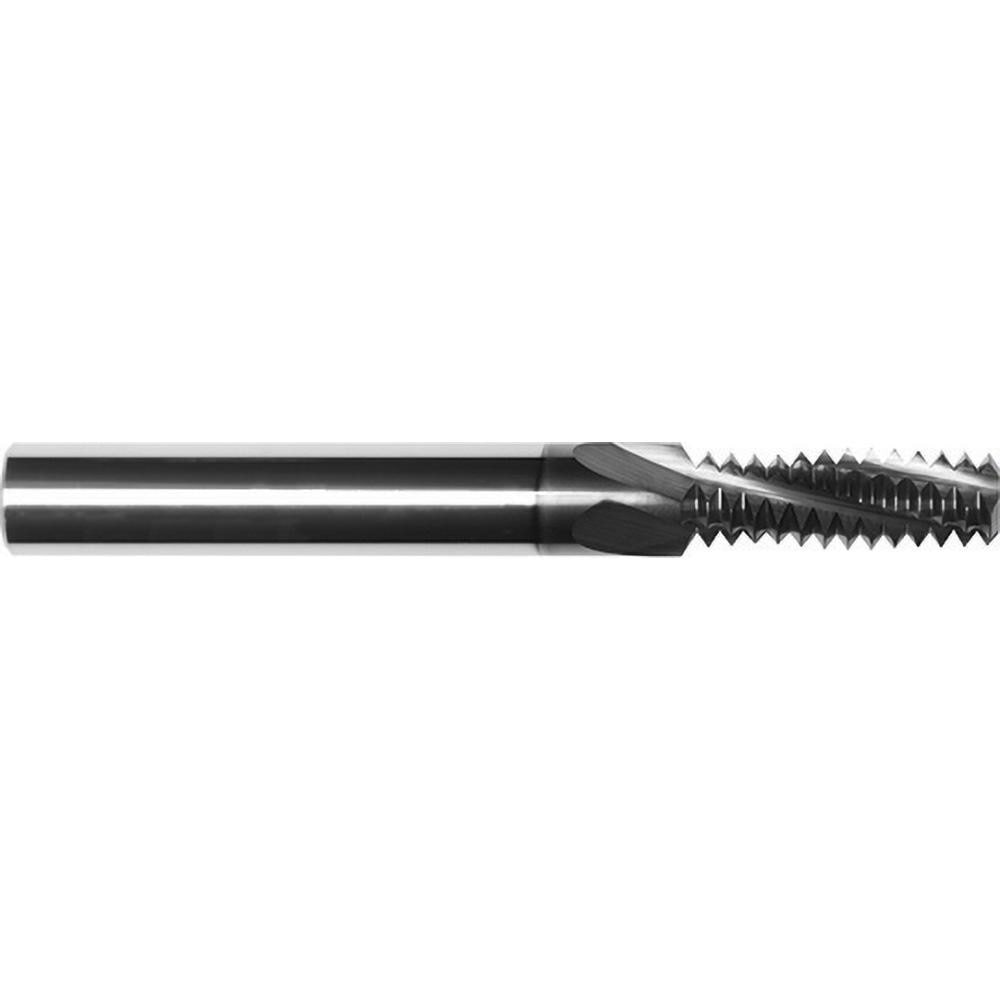

Helical Flute Thread Mill: #10-24, Internal & External, 3 Flute, 0.1250" Shank Dia, Solid Carbide
Item #: 70589809
Brand: Internal Tool
Model #: 89-1215
Product Specifications
| Material | Solid Carbide |
| Thread Size (Inch) | #10-24 |
| Thread Type | Internal; External |
| Shank Diameter (Decimal Inch) | 0.1250 |
| Shank Type | Straight-Cylindrical |
| Cutting Diameter (Decimal Inch) | 0.1200 |
| Length Of Cut (Decimal Inch - 4 Decimals) | 0.3125 |
| Minimum Nominal Diameter (Inch) | 0.1200 |
| Shank Length (Decimal Inch) | 1.6875 |
| Shank Length (Inch) | 1-11/16 |
| Overall Length (Decimal Inch) | 2.0000 |
| Thread Standard | UNC |
| Flute Direction | Right Hand |
| Material Grade | Micrograin |
| Series | 89 |
| Number Of Flutes | 3 |
| Coating/Finish | AlTiN |
| Coolant Through | No |
| Thread Length (Decimal Inch) | 0.3120 |
| Teeth Per Inch | 24 |
| UNSPSC Code | 23242117 |
| Material | Solid Carbide |
| Thread Size (Inch) | #10-24 |
| Thread Type | Internal; External |
| Shank Diameter (Decimal Inch) | 0.1250 |
| Shank Type | Straight-Cylindrical |
| Cutting Diameter (Decimal Inch) | 0.1200 |
| Length Of Cut (Decimal Inch - 4 Decimals) | 0.3125 |
| Minimum Nominal Diameter (Inch) | 0.1200 |
| Shank Length (Decimal Inch) | 1.6875 |
| Shank Length (Inch) | 1-11/16 |
| Overall Length (Decimal Inch) | 2.0000 |
| Thread Standard | UNC |
| Flute Direction | Right Hand |
| Material Grade | Micrograin |
| Series | 89 |
| Number Of Flutes | 3 |
| Coating/Finish | AlTiN |
| Coolant Through | No |
| Thread Length (Decimal Inch) | 0.3120 |
| Teeth Per Inch | 24 |
| UNSPSC Code | 23242117 |
| MSC Part # | 70589809 |
| Mfr Part # | 89-1215 |
| Country of Origin Country of Origin is subject to change | UNITED STATES |
