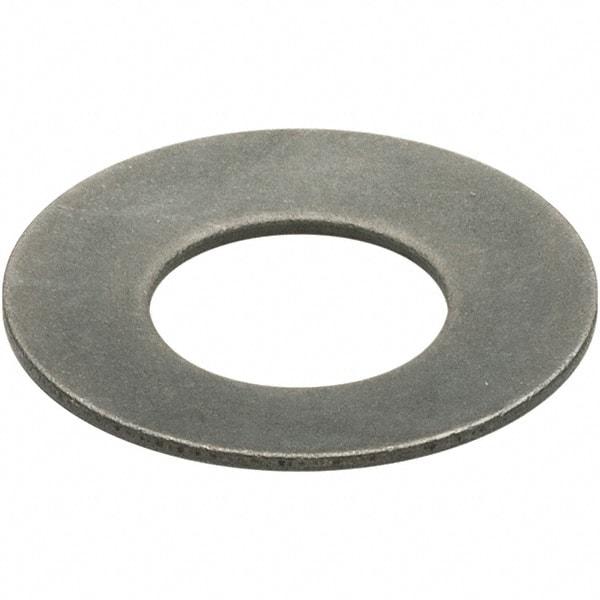

Associated Spring Raymond - 1.1221" ID, Grade 17-7 PH Stainless Steel, Uncoated, Belleville Disc Spring - 2.2047" OD, 0.1594" High, 0.1181" Thick
Item #: 61413027
Brand: Associated Spring Raymond
Model #: BD0563000285S
Exact Tooling IR#: 04
Features and Benefits
Belleville disc springs, also known as conical washers, have a curved shape that creates a spring-like action. They are used in applications that require heavy loads.
| Product Specifications | |
|---|---|
| Type | Belleville Disc Spring |
| System of Measurement | Metric |
| Inside Diameter (Decimal Inch) | 1.1221 |
| Inside Diameter (mm) | 28.50 |
| Material | Stainless Steel |
| Material Grade | 17-7 PH |
| Outside Diameter (Decimal Inch) | 2.2047 |
| Outside Diameter (mm) | 56.00 |
| Thickness (mm) | 3.00 |
| Thickness (Decimal Inch) | 0.1181 |
| Overall Height (mm) | 4.05 |
| Overall Height (Decimal Inch) | 0.1594 |
| Deflection (Decimal Inch) | 0.0311 |
| Deflection (mm) | 0.79 |
| Load at Deflection (Lb.) | 1987.76 |
| Load at Deflection (N) | 8842.00 |
| Finish/Coating | Uncoated |
| Fastener Standard | DIN 2093 |
