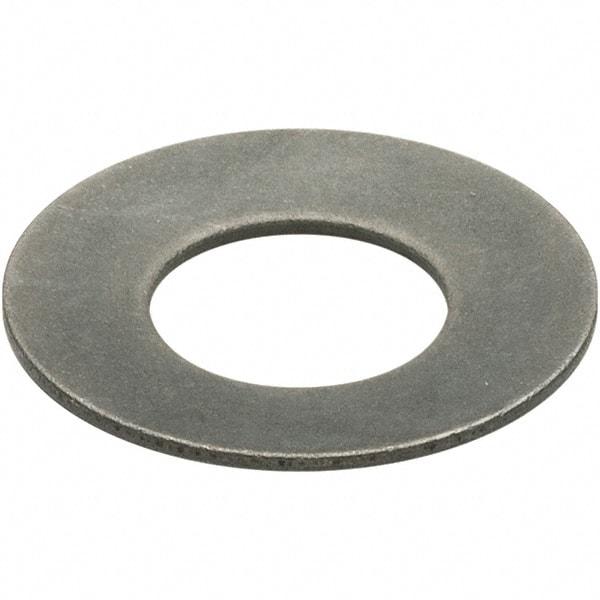

Associated Spring Raymond - 0.8032" ID, Grade 17-7 PH Stainless Steel, Uncoated, Belleville Disc Spring - 1.5748" OD, 0.0965" High, 0.0591" Thick
Item #: 61412748
Brand: Associated Spring Raymond
Model #: BD0401500204S
Exact Tooling IR#: 04
Features and Benefits
Belleville disc springs, also known as conical washers, have a curved shape that creates a spring-like action. They are used in applications that require heavy loads.
| Product Specifications | |
|---|---|
| Type | Belleville Disc Spring |
| System of Measurement | Metric |
| Inside Diameter (Decimal Inch) | 0.8032 |
| Inside Diameter (mm) | 20.40 |
| Material | Stainless Steel |
| Material Grade | 17-7 PH |
| Outside Diameter (Decimal Inch) | 1.5748 |
| Outside Diameter (mm) | 40.00 |
| Thickness (mm) | 1.50 |
| Thickness (Decimal Inch) | 0.0591 |
| Overall Height (mm) | 2.45 |
| Overall Height (Decimal Inch) | 0.0965 |
| Deflection (Decimal Inch) | 0.0280 |
| Deflection (mm) | 0.71 |
| Load at Deflection (Lb.) | 459.96 |
| Load at Deflection (N) | 2046.00 |
| Finish/Coating | Uncoated |
| Fastener Standard | DIN 2093 |
