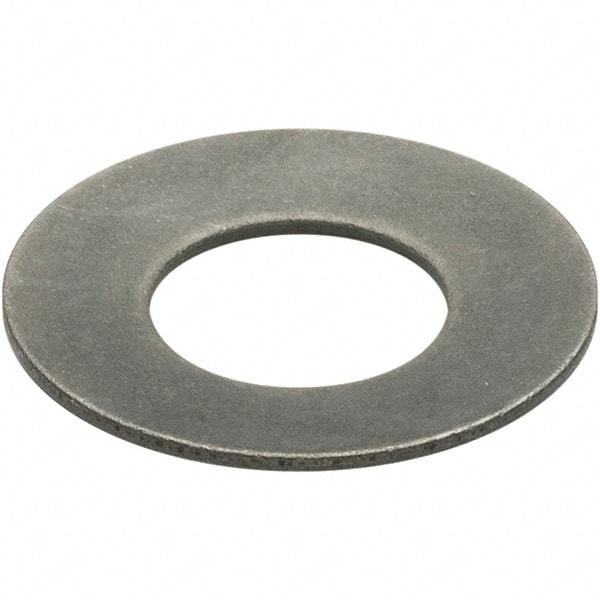

Associated Spring Raymond - 0.7205" ID, Grade 1075 High Carbon Steel, Oil Finish, Belleville Disc Spring - 1.3976" OD, 0.0886" High, 0.0492" Thick
Item #: 61412656
Brand: Associated Spring Raymond
Model #: BD036125
Exact Tooling IR#: 04
Features and Benefits
Belleville disc springs, also known as conical washers, have a curved shape that creates a spring-like action. They are used in applications that require heavy loads.
| Product Specifications | |
|---|---|
| Type | Belleville Disc Spring |
| System of Measurement | Metric |
| Inside Diameter (Decimal Inch) | 0.7205 |
| Inside Diameter (mm) | 18.30 |
| Material | High Carbon Steel |
| Material Grade | 1075 |
| Outside Diameter (Decimal Inch) | 1.3976 |
| Outside Diameter (mm) | 35.50 |
| Thickness (mm) | 1.25 |
| Thickness (Decimal Inch) | 0.0492 |
| Overall Height (mm) | 2.25 |
| Overall Height (Decimal Inch) | 0.0886 |
| Deflection (Decimal Inch) | 0.0295 |
| Deflection (mm) | 0.75 |
| Load at Deflection (Lb.) | 382.18 |
| Load at Deflection (N) | 1700.00 |
| Finish/Coating | Oil |
| Fastener Standard | DIN 2093 |
