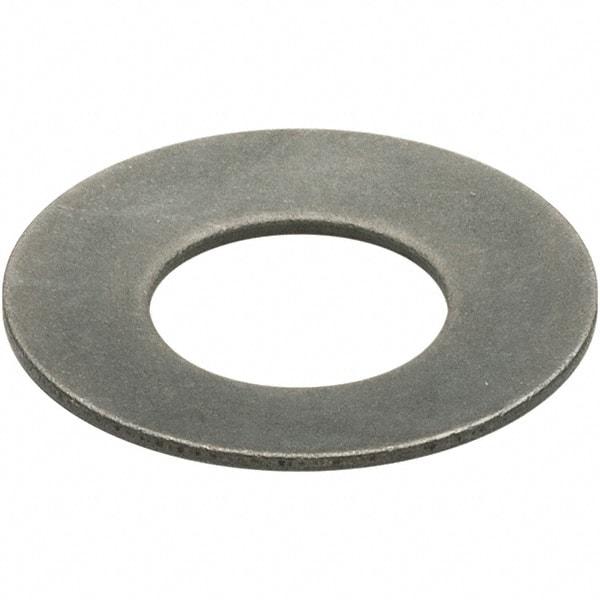

Associated Spring Raymond - 0.6417" ID, Grade 17-7 PH Stainless Steel, Uncoated, Belleville Disc Spring - 1.2402" OD, 0.1083" High, 0.0787" Thick
Item #: 61412599
Brand: Associated Spring Raymond
Model #: BD0322000163S
Exact Tooling IR#: 04
Features and Benefits
Belleville disc springs, also known as conical washers, have a curved shape that creates a spring-like action. They are used in applications that require heavy loads.
| Product Specifications | |
|---|---|
| Type | Belleville Disc Spring |
| System of Measurement | Metric |
| Inside Diameter (Decimal Inch) | 0.6417 |
| Inside Diameter (mm) | 16.30 |
| Material | Stainless Steel |
| Material Grade | 17-7 PH |
| Outside Diameter (Decimal Inch) | 1.2402 |
| Outside Diameter (mm) | 31.50 |
| Thickness (mm) | 2.00 |
| Thickness (Decimal Inch) | 0.0787 |
| Overall Height (mm) | 2.75 |
| Overall Height (Decimal Inch) | 0.1083 |
| Deflection (Decimal Inch) | 0.0181 |
| Deflection (mm) | 0.46 |
| Load at Deflection (Lb.) | 1247.02 |
| Load at Deflection (N) | 5547.00 |
| Finish/Coating | Uncoated |
| Fastener Standard | DIN 2093 |
