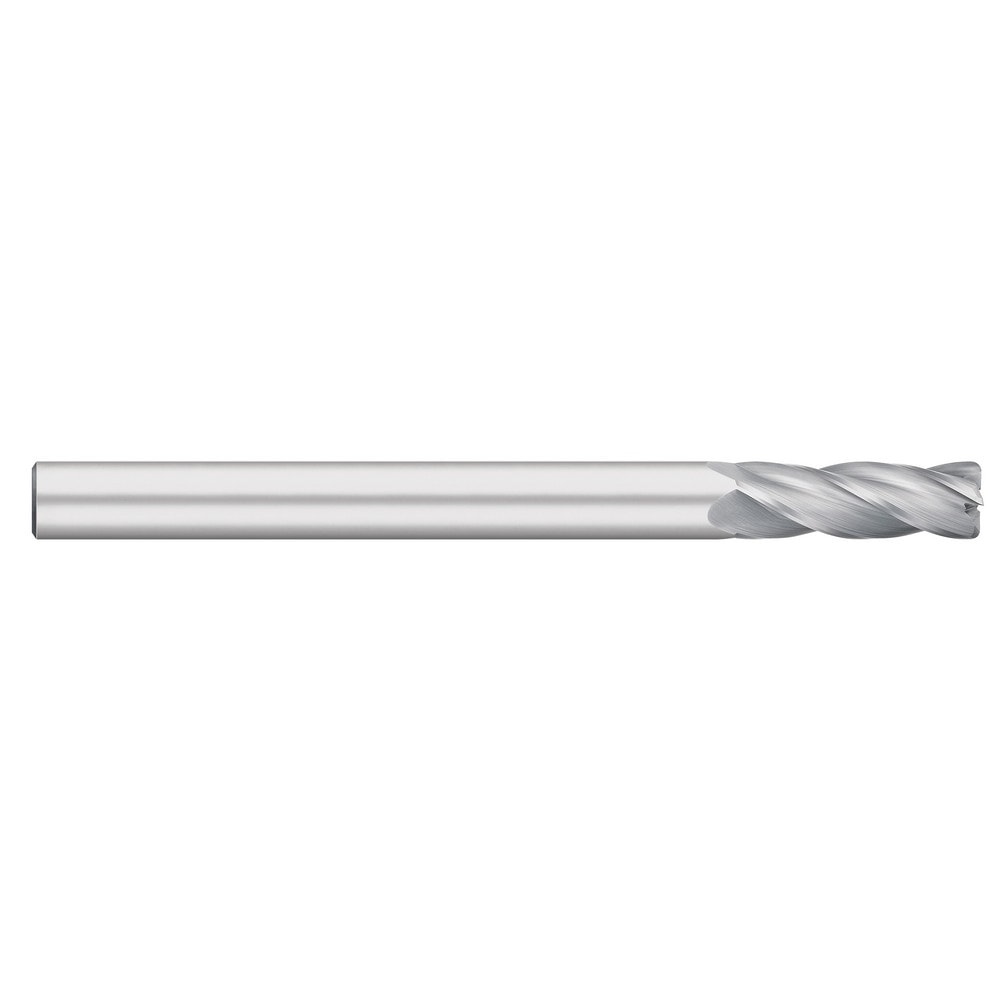

Corner Radius End Mill: 3/16" Dia, 1-1/8" LOC, 0.0150" Radius, 4 Flute, Solid Carbide
Item #: 33122219
Brand: Titan USA
Model #: TC74504
Product Specifications
| Mill Diameter (Inch) | 3/16 |
| Mill Diameter (Decimal Inch) | 0.1875 |
| Number Of Flutes | 4 |
| Length of Cut (Inch) | 1-1/8 |
| Single Or Double End | Single |
| End Mill Material | Solid Carbide |
| Overall Length (Inch) | 3 |
| Centercutting | Yes |
| Flute Direction | Right Hand |
| Corner Radius (Decimal Inch) | 0.0150 |
| Variable Index | No |
| Variable Helix | No |
| Cutting Direction | Right Hand |
| Overall Length (Decimal Inch) | 3.0000 |
| Chipbreaker | No |
| End Type | Corner Radius |
| Length Of Cut (Decimal Inch - 4 Decimals) | 1.1250 |
| Extended Reach | No |
| Shank Type | Straight-Cylindrical |
| Shank Diameter (Decimal Inch) | 0.1875 |
| Shank Diameter (Inch) | 3/16 |
| UNSPSC Code | 27112803 |
| Series | General Purpose End Mills - Carbide - 4 Flute - Corner Radius - 30° Helix |
