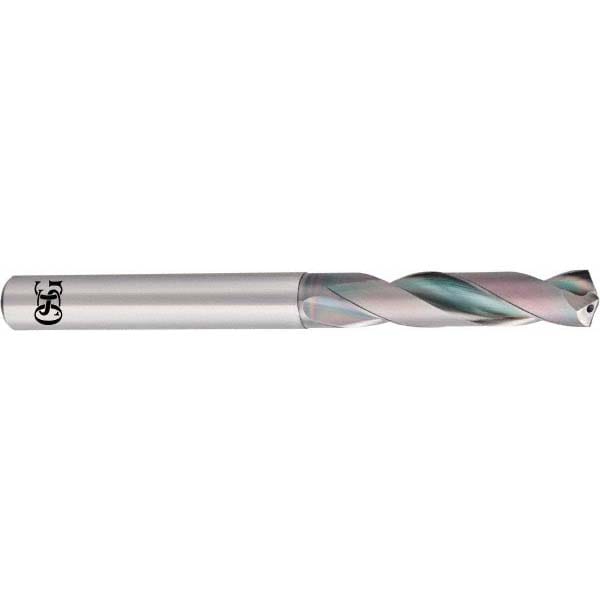

Screw Machine Length Drill Bit: 3.00 mm Dia, 140 deg Point, Solid Carbide
Item #: 48831937
Brand: OSG
Model #: 8690300
Product Specifications
| Drill Bit Size (mm) | 3.00 |
| Drill Bit Size (Decimal Inch) | 0.1181 |
| Tool Material | Solid Carbide |
| Cutting Direction | Right Hand |
| Coating/Finish | Multi-layer |
| Number Of Flutes | 2 |
| Spiral Type | Regular |
| Flute Type | Regular Spiral |
| Drill Point Angle | 140 |
| Coolant Through | Yes |
| Primary Workpiece Material | High-Temp Alloy; Cast Iron; Steel; Hardened Materials |
| Point Type | R-Thinned |
| Shank Type | Straight |
| Shank Diameter (Decimal Inch) | 0.1181 |
| Overall Length (mm) | 66.00 |
| Overall Length (Decimal Inch) | 2.5984 |
| Shank Diameter (mm) | 3.00 |
| Series | 6500 |
| Web Thinning | R-Thinned |
| Web Configuration | Tapered |
| Proprietary Coating/Finish | EgiAs |
| Drill Length Type | Screw Machine |
| Flute By Diameter Ratio | 3xD |
| Tool Performance | High Performance |
| Drill Bit Diameter Tolerance | +0 to -0.014 mm |
| Flute Length (mm) | 18.00 |
| Drill Bit Size Range (Decimal Inch) | 0.1000 to 0.1500 |
| Drill Bit Size Range (mm) | 0.00 - 3.50 |
| UNSPSC Code | 23241635 |
