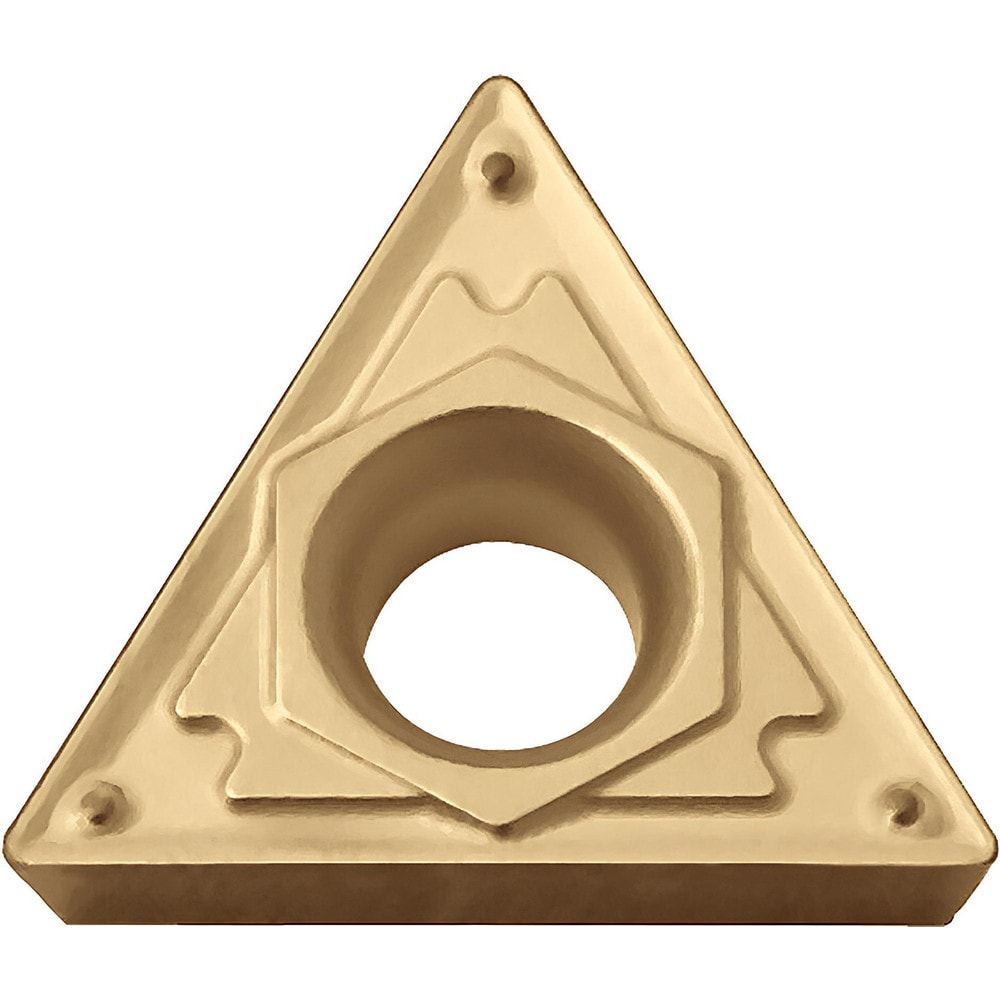

Turning Insert: TCMT2152HQ CA6535, Carbide
Item #: 28466126
Brand: Kyocera
Model #: 8850602
Product Specifications
| ANSI Insert Code | TCMT2152 |
| ISO Insert Code | TCMT110208 |
| Relief Angle | 7 |
| Insert Style | TCMT |
| Corner Radius (Inch) | 1/32 |
| Corner Radius (Decimal Inch) | 0.0313 |
| Included Angle | 60 |
| Manufacturer Grade | CA6535 |
| Coating/Finish | TiCN; TiN; Al2O3 |
| Wiper Edge | No |
| Insert Hand | Neutral |
| Insert Thickness (Inch) | 3/32 |
| Insert Thickness (Decimal Inch) | 0.0938 |
| Series | ISOI |
| Inscribed Circle (Decimal Inch) | 0.2500 |
| Inscribed Circle (Inch) | 1/4 |
| Insert Material | Carbide |
| Insert Shape | T - Triangle |
| Chip Breaker Operation | Medium Machining; Finishing |
| Side Clearance | Positive |
| Number Of Cutting Edges | 3 |
| Insert Shape Code | T |
| Hole Diameter (Decimal Inch) | 0.1102 |
| Maximum Depth of Cut (Decimal Inch) | 0.2758 |
| Insert Holding Method | Screw |
| Clearance Code | C |
| Tolerance Code | M |
| Coating Process | CVD |
| Length Range (Decimal Inch) | 0.7000 - 10.0000 |
| Rake | Positive |
| Insert Length (Decimal Inch) | 0.8274 |
| Primary Workpiece Material | Stainless Steel |
| Primary Workpiece Material Code | M |
| Secondary Workpiece Material | Superalloy |
| Secondary Workpiece Material Code | S |
| Iso Code | TCMT2152HQCA6535 |
| Manufacturers Catalog Number | 8850602 |
| Material Grade | S20; S10; M30 |
| Coating Classification | CVD |
| Chip Breaker | HQ |
| Rake Angle | 15 |
| Cutting Edge Style | Honed |
| Industry Standard Number | TCMT2152HQCA6535 |
| Width (Decimal Inch - 4 Decimals) | 0.8274 |
| Multi-Use Tool | No |
| Full Radius | No |
| Multi-Use Application | External Turning |
| ANSI Size Code | 2152 |
| ISO Size Code | 110208 |
| UNSPSC Code | 23242105 |
| Insert Size Code | 2152 |
