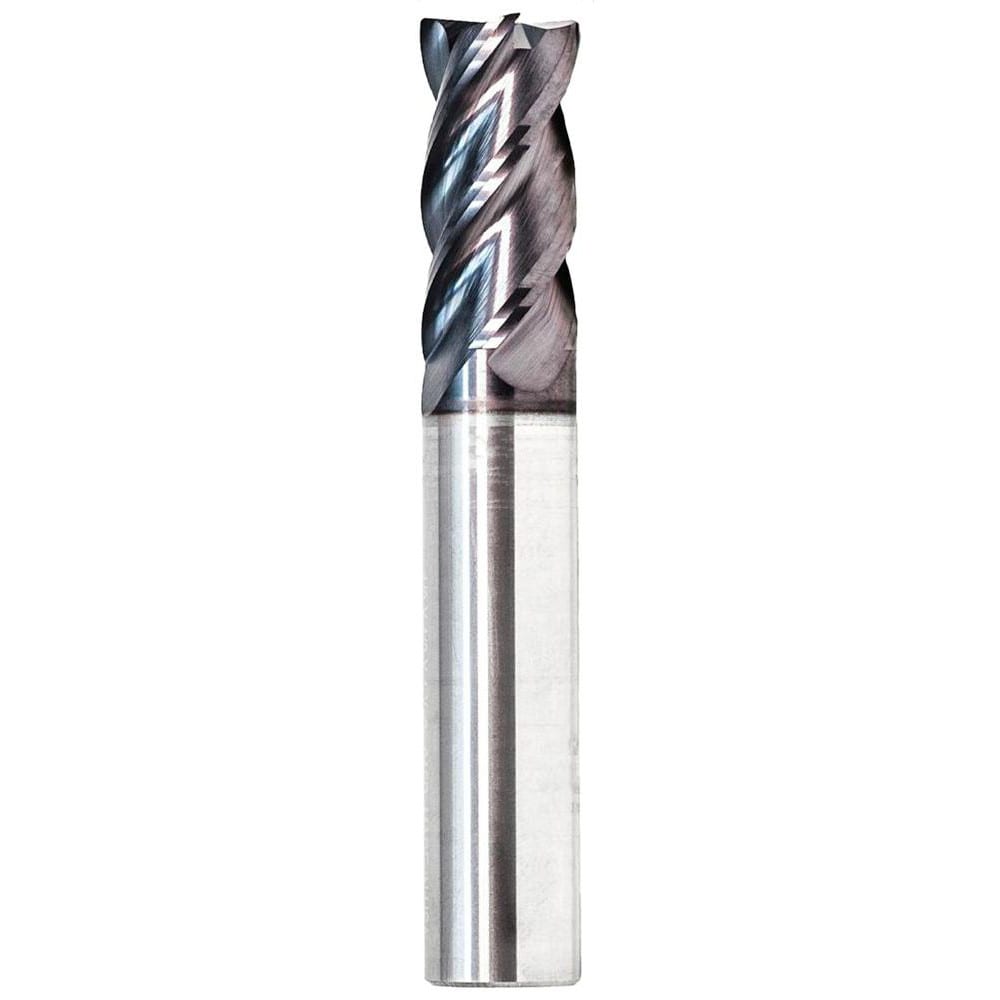

Corner Radius End Mill: 3/8" Dia, 2-1/4" LOC, 3.04 mm Radius, 4 Flute, Solid Carbide
Item #: 18950717
Brand: GWS
Model #: 121532
Product Specifications
| Mill Diameter (Inch) | 3/8 |
| Mill Diameter (Decimal Inch) | 0.3750 |
| Number Of Flutes | 4 |
| Length of Cut (mm) | 28.57 |
| Length of Cut (Inch) | 1-1/8 |
| Single Or Double End | Single |
| End Mill Material | Solid Carbide |
| Coating/Finish | FX1 |
| Overall Length (Inch) | 3 |
| Centercutting | Yes |
| Flute Direction | Right Hand |
| Corner Radius (Decimal Inch) | 0.1200 |
| Variable Index | Yes |
| Variable Helix | Yes |
| Cutting Direction | Right Hand |
| Corner Radius (mm) | 3.04 |
| Overall Length (mm) | 76.20 |
| Coolant Through | No |
| Pitch | Normal |
| Overall Length (Decimal Inch) | 3.0000 |
| Chipbreaker | No |
| End Type | Corner Radius |
| Length Of Cut (Decimal Inch - 4 Decimals) | 1.1250 |
| Length Type | Standard |
| Flute Type | Spiral |
| Extended Reach | No |
| Shank Type | Straight-Cylindrical |
| Material Removal Type | Roughing & Finishing |
| Shank Diameter (Decimal Inch) | 0.3750 |
| Shank Diameter (Inch) | 3/8 |
| Shank Diameter Tolerance | h6 |
| Primary Workpiece Material | Hard Material; Cast Iron; Superalloys & Titanium; Steel |
| UNSPSC Code | 27112803 |
| Primary Workpiece Material Code | P; S; H; K |
| Secondary Workpiece Material | Stainless Steel |
| Secondary Workpiece Material Code | M |
| Material Grade | Submicron |
| Series | 1030 |
| Material Application | Hard Material; Stainless Steel; Cast Iron; Superalloys & Titanium; Steel |
| Coating Classification | Uncoated |
| For Use With. | End Mill Toolholders |
