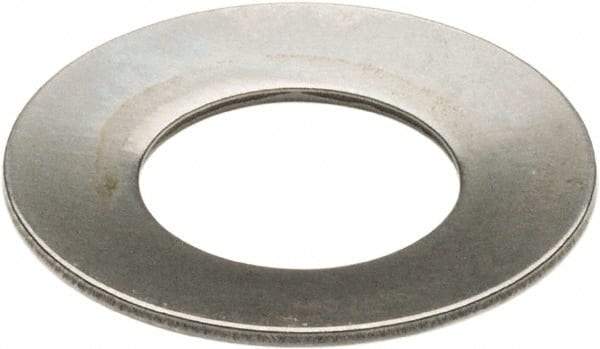

Associated Spring Raymond - 1-13/32" Bolt, Grade 6150 Chrome Vanadium Steel, Oil Finish, Belleville Disc Spring - 0.196" High, 0.132" Thick
Item #: 61410866
Brand: Associated Spring Raymond
Model #: B27501320
Exact Tooling IR#: 04
Features and Benefits
Belleville disc springs, also known as conical washers, have a curved shape that creates a spring-like action. They are used in applications that require heavy loads.
| Product Specifications | |
|---|---|
| Type | Belleville Disc Spring |
| Bolt Size (Inch) | 1-13/32 |
| Bolt Size (mm) | 35.72 |
| System of Measurement | Inch |
| Material | Chrome Vanadium Steel |
| Material Grade | 6150 |
| Thickness (mm) | 3.35 |
| Thickness (Decimal Inch) | 0.1320 |
| Overall Height (mm) | 4.98 |
| Overall Height (Decimal Inch) | 0.1960 |
| Deflection (Decimal Inch) | 0.0510 |
| Deflection (mm) | 1.30 |
| Minimum Inside Diameter (Decimal Inch) | 1.4070 |
| Minimum Inside Diameter (mm) | 35.74 |
| Maximum Outside Diameter (Decimal Inch) | 2.7500 |
| Maximum Outside Diameter (mm) | 69.85 |
| Load at Flat (Lb.) | 4243.00 |
| Load at Flat (N) | 18873.80 |
| Minimum Load at Deflection (Lb.) | 2554.00 |
| Minimum Load at Deflection (N) | 11360.80 |
| Maximum Load at Deflection (Lb.) | 2950.00 |
| Maximum Load at Deflection (N) | 13122.30 |
| Finish/Coating | Oil |
| Bolt Size (Decimal Inch) | 1.4063 |
