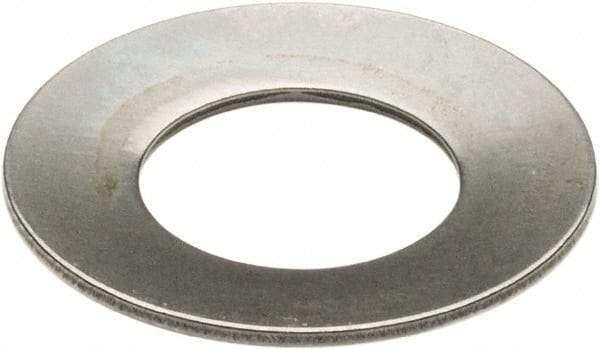

Associated Spring Raymond - 1-1/4" Bolt, Grade 1074 Steel, Oil Finish, Belleville Disc Spring - 0.16" High, 0.08" Thick
Item #: 61410783
Brand: Associated Spring Raymond
Model #: B2500080
Exact Tooling IR#: 04
Features and Benefits
Belleville disc springs, also known as conical washers, have a curved shape that creates a spring-like action. They are used in applications that require heavy loads.
| Product Specifications | |
|---|---|
| Type | Belleville Disc Spring |
| Bolt Size (Inch) | 1-1/4 |
| Bolt Size (mm) | 31.75 |
| System of Measurement | Inch |
| Material | Steel |
| Material Grade | 1074 |
| Thickness (mm) | 2.03 |
| Thickness (Decimal Inch) | 0.0800 |
| Overall Height (mm) | 4.06 |
| Overall Height (Decimal Inch) | 0.1600 |
| Deflection (Decimal Inch) | 0.0400 |
| Deflection (mm) | 1.02 |
| Minimum Inside Diameter (Decimal Inch) | 1.2500 |
| Minimum Inside Diameter (mm) | 31-3/4 |
| Maximum Outside Diameter (Decimal Inch) | 2.5000 |
| Maximum Outside Diameter (mm) | 63.50 |
| Load at Flat (Lb.) | 1260.00 |
| Load at Flat (N) | 5604.76 |
| Minimum Load at Deflection (Lb.) | 739.00 |
| Minimum Load at Deflection (N) | 3287.24 |
| Maximum Load at Deflection (Lb.) | 1000.00 |
| Maximum Load at Deflection (N) | 4448.22 |
| Finish/Coating | Oil |
| Bolt Size (Decimal Inch) | 1-1/4 |
